COMPONENTS
ILLUSTRATION
|

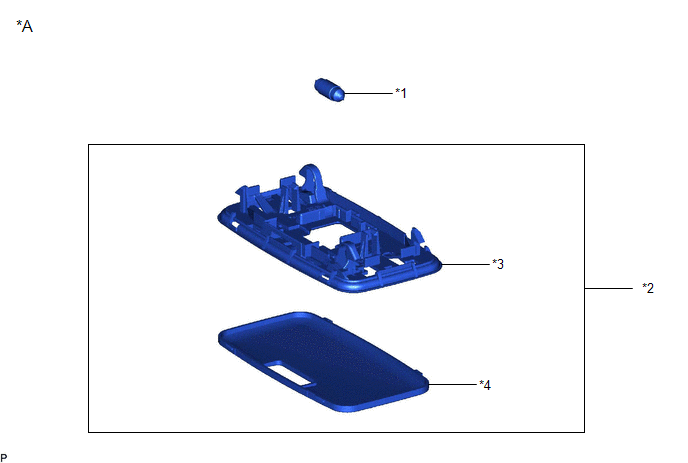

*A | for Bulb Type |
- | - |
|
*1 | REAR ROOM LIGHT BULB |
*2 | ROOM LIGHT ASSEMBLY |
|
*3 | ROOM LIGHT HOUSING |
*4 | ROOM LIGHT LENS |
ILLUSTRATION
|

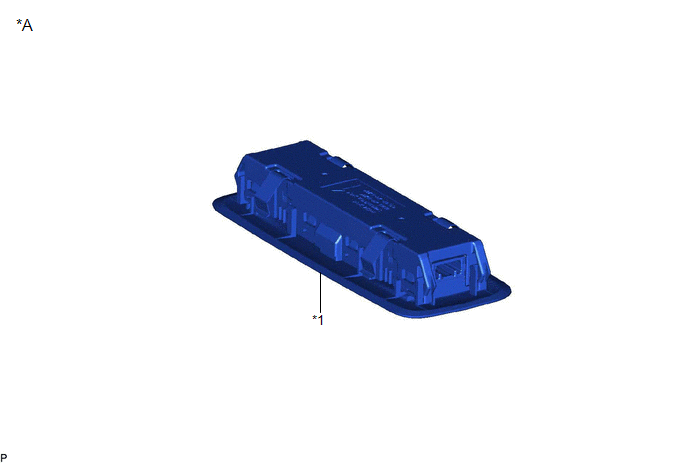

*A | for LED Type |
- | - |
|
*1 | SPOT LIGHT ASSEMBLY |
- | - |
