DTC COMBINATION TABLE

HOW TO INTERPRET COMMUNICATION DTCS (DTCS THAT START WITH U)

(a) If a CAN communication error cannot be reproduced, determine the suspected malfunctioning part using the DTCs stored in ECUs that are connected to the CAN buses by following the procedure below.

HINT:

Communication DTCs (DTCs that start with U) indicate a communication error between the ECU that stores the DTC and the ECU that is indicated by the DTC.

(1) If multiple ECUs store a communication DTC for a particular ECU, a communication stop of the ECU is suspected.

*a

Items to be Checked

-

-

NOTICE:

  • This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
  • Even though a DTC title may indicate a communication error with a specific ECU, the ECU name used in the DTC name on the Techstream may differ depending on the ECU that stores the DTC. (Regarding output DTCs, refer to DTC Table by ECU.)

    Click here

HINT:

As multiple ECUs indicate a communication stop with the main body ECU, the possibility of a communication stop of the main body ECU is high.

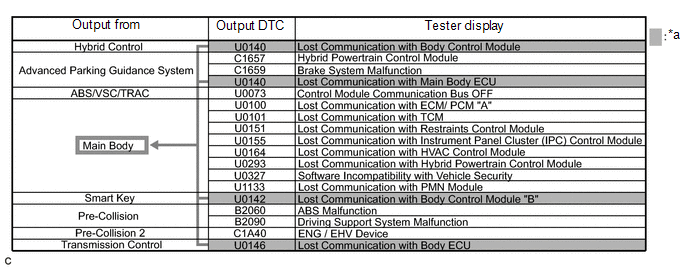

(2) If almost all of the communication DTCs of an ECU are stored, a communication stop of the ECU is suspected.

*a

Items to be Checked

-

-

NOTICE:

  • This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
  • Even though a DTC title may indicate a communication error with a specific ECU, the ECU name used in the DTC name on the Techstream may differ depending on the ECU that stores the DTC. (Regarding output DTCs, refer to DTC Table by ECU.)

    Click here

HINT:

  • If almost all of the DTCs of the main body ECU are stored, the possibility of a communication stop of the main body ECU is high.
  • When a CAN communication error occurs, many DTCs are output. DTCs other than communication error DTCs (such as DTCs that start with C or B) and communication DTCs for the ABS system are important DTCs, however it may be easier to determine the malfunctioning part by examining the overall situation without considering these DTCs.

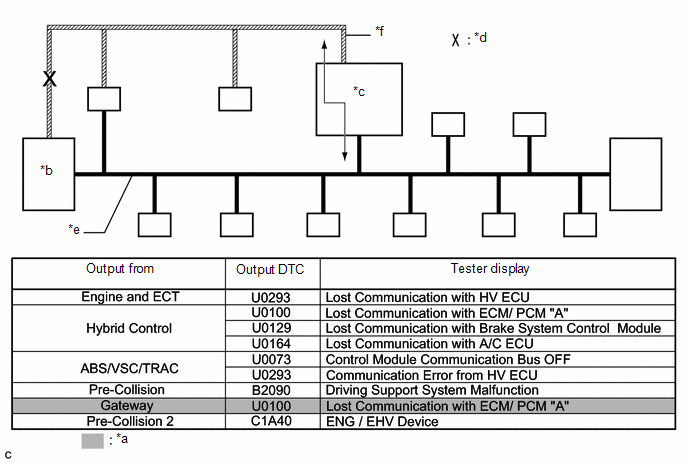

(b) To help determine the part of the sub bus that has a communication error, prioritize the communication stop DTCs stored in the gateway function equipped ECU.

*a

Items to be Checked

*b

ECM

*c

Gateway function equipped ECU

*d

Location of malfunction

*e

Central bus

*f

Sub bus

NOTICE:

This DTC table is from another model, and is only used here to show the ECUs connected to both a central bus and a sub bus. It shows DTCs output when there is an open in the main bus lines for the ECM on the sub bus. This table does not show DTCs applicable to this vehicle.

HINT:

  • As gateway function equipped ECUs (sub bus monitor ECU) monitor signals from all ECUs that are connected to sub buses, gateway function equipped ECUs can detect ECUs with a communication stop more accurately.
  • When there is a communication stop for the gateway function equipped ECU (gateway), communication with ECUs connected to other buses such as the central bus stops. Therefore, communication DTCs for ECUs connected to other buses are also stored.

(c) When any of the following malfunctions occurs, many DTCs are likely to be output from many ECUs. Because of this, it may be difficult to determine the probable malfunctioning part.

  • Short between CAN lines (CANH and CANL)
  • Short between a CAN line (CANH or CANL) and ground
  • Short between a CAN line (CANH or CANL) and +B
  • Open in a CAN branch line (CANH or CANL) of an ECU or sensor
  • Open in a CAN main bus line (CANH or CANL) between 2 ECUs that have a terminating resistor

DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 1, PAST COMMUNICATION ERROR)

(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 1 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.

HINT:

  • Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
  • If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
  • ○: DTC is output.
  • -: DTC is not output.
  • *1: DTC U0073 may be stored when communication is lost.
  • *2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
  • If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
  • If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Front Camera Module Communication Stop Mode

Millimeter Wave Radar Sensor Communication Stop Mode

Blind Spot Monitor Sensor Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Bus 1

Blind Spot Monitor Sensor RH

U0100

-

-

○

U0125

-

-

○

U0126

-

-

○

U0129

-

-

○

U0142

-

-

○

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

○

-

-

U012587

○

-

-

U012687

○

-

-

U012987

○

-

-

U015587

○

-

-

U110687

○

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

○

-

-

U012587

○

-

-

U012687

○

-

-

U012987

○

-

-

U013187

○

-

-

Forward Recognition Camera

(Front Camera System)

U010087

○

-

-

U012587

○

-

-

U012687

○

-

-

U012987

○

-

-

U014087

○

-

-

Forward Recognition Camera

(Lighting System)

U010087

○

-

-

U012587

○

-

-

U012987

○

-

-

U014087

○

-

-

Forward Recognition Camera

(Lane Control System)

U010087

○

-

-

U012587

○

-

-

U012687

○

-

-

U012987

○

-

-

U013187

○

-

-

U015587

○

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

○

-

-

U012587

○

-

-

U012987

○

-

-

U014087

○

-

-

U015587

○

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

○

U023B

-

-

-

U1110

-

-

-

Bus 1

Television Camera Controller*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

○

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016487

-

-

-

U023387

-

-

○

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

-

-

-

U015587

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

○

-

U012287

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

-

-

-

U0265

-

-

-

U1110

-

-

-

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

-

-

-

U010187

-

-

-

U012587

-

-

-

U012687

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

Bus 4

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U023A

○

-

-

Occupant Detection ECU

U0125

-

-

-

U0129

-

-

-

4WD ECU Assembly*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0131

-

-

-

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0126

-

-

-

U0129

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

○

-

-

U0327

-

-

-

U1106

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Bus 5

Combination Meter Assembly

U010087

-

-

-

U011487

-

-

-

U012987

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

U016387

-

-

-

U016487

-

-

-

U023387

-

-

○

U023A87

○

-

-

U032787

-

-

-

U110687

-

-

-

U111087

-

-

-

U111287

-

-

-

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

○

-

-

U111087

-

-

-

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Rear Television Camera Communication Stop Mode

Clearance Warning ECU Communication Stop Mode

Parking Assist ECU Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

-

U0125

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U015587

-

-

-

U110687

-

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

Bus 1

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

U015587

-

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

○

-

-

U0126

○

-

-

U0129

○

-

-

U0140

○

-

-

U0163

○

-

-

U0233

○

-

-

U023B

○

-

○

U1110

○

○

-

Television Camera Controller*1

U0100

-

-

○

U0126

-

-

○

U0129

-

-

○

U0140

-

-

○

U0163

-

-

○

U0233

-

-

○

U0265

○

-

○

U1110

-

○

○

Clearance Warning ECU Assembly*1

U010087

-

○

-

U012587

-

○

-

U012687

-

○

-

U012987

-

○

-

U014087

-

○

-

U015587

-

○

-

U016487

-

○

-

U023387

-

○

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

-

-

-

U015587

-

-

-

Bus 2

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

U012287

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

-

-

○

U0265

○

-

-

U1110

-

○

-

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

-

-

-

U010187

-

-

-

U012587

-

-

-

U012687

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U023A

-

-

-

Occupant Detection ECU

U0125

-

-

-

U0129

-

-

-

4WD ECU Assembly*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0131

-

-

-

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

Bus 5

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0126

-

-

-

U0129

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

-

-

-

U0327

-

-

-

U1106

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Combination Meter Assembly

U010087

-

-

-

U011487

-

-

-

U012987

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

U016387

-

-

-

U016487

-

-

-

U023387

-

-

-

U023A87

-

-

-

U032787

-

-

-

U110687

-

-

-

U111087

-

○

-

U111287

-

-

-

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

-

-

-

U111087

-

○

-

-

Trouble Mode

Open in CAN main bus line(s)

Output ECU

Output DTC

Central Gateway ECU (Network Gateway ECU) (CA1H and CA1L Terminal)

No. 1 CAN Junction Connector to No. 5 CAN Junction Connector

Central Gateway ECU (Network Gateway ECU) (CAXH and CAXL Terminal)

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

○

○

-

U0125

○

○

-

U0126

○

○

-

U0129

○

○

-

U0142

○

○

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

○

-

-

U012587

○

-

-

U012687

○

-

-

U012987

○

-

-

U015587

○

-

-

U110687

○

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

○

-

-

U012587

○

-

-

U012687

○

-

-

U012987

○

-

-

U013187

○

-

-

Forward Recognition Camera

(Front Camera System)

U010087

○

-

-

U012587

○

-

-

U012687

○

-

-

U012987

○

-

-

U014087

○

-

-

Forward Recognition Camera

(Lighting System)

U010087

○

-

-

U012587

○

-

-

U012987

○

-

-

U014087

○

-

-

Forward Recognition Camera

(Lane Control System)

U010087

○

-

-

U012587

○

-

-

U012687

○

-

-

U012987

○

-

-

U013187

○

-

-

U015587

○

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

○

-

-

U012587

○

-

-

U012987

○

-

-

U014087

○

-

-

U015587

○

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

○

○

-

U0126

○

○

-

U0129

○

○

-

U0140

○

○

-

U0163

○

○

-

U0233

-

-

-

U023B

-

-

-

U1110

-

-

-

Bus 1

Television Camera Controller*1

U0100

○

○

-

U0126

○

○

-

U0129

○

○

-

U0140

○

○

-

U0163

○

○

-

U0233

-

-

-

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

○

○

-

U012587

○

○

-

U012687

○

○

-

U012987

○

○

-

U014087

○

○

-

U015587

○

○

-

U016487

○

○

-

U023387

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

-

-

-

U015587

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

○

-

-

U012287

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

○

○

-

U0265

○

○

-

U1110

○

○

-

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

-

-

-

U010187

-

-

-

U012587

-

-

-

U012687

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

Bus 4

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U023A

○

-

-

Occupant Detection ECU

U0125

-

-

-

U0129

-

-

-

4WD ECU Assembly*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0131

-

-

-

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0126

-

-

-

U0129

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

○

-

-

U0327

-

-

-

U1106

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Bus 5

Combination Meter Assembly

U010087

-

-

-

U011487

-

-

-

U012987

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

U016387

-

-

-

U016487

-

-

-

U023387

○

○

-

U023A87

○

-

-

U032787

-

-

-

U110687

-

-

-

U111087

○

○

-

U111287

-

-

-

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

○

-

-

U111087

○

○

-

-

Trouble Mode

CAN bus lines short circuit or short to GND

Output ECU

Output DTC

CANH to CANL

CANH Short to Ground

CANL Short to Ground

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

○

○

○

U0125

○

○

○

U0126

○

○

○

U0129

○

○

○

U0142

○

○

○

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

○

○

○

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U015587

○

○

○

U110687

○

○

○

Forward Recognition Camera

(Pre-collision System)

U010087

○

○

○

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U013187

○

○

○

Forward Recognition Camera

(Front Camera System)

U010087

○

○

○

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U014087

○

○

○

Bus 1

Forward Recognition Camera

(Lighting System)

U010087

○

○

○

U012587

○

○

○

U012987

○

○

○

U014087

○

○

○

Forward Recognition Camera

(Lane Control System)

U010087

○

○

○

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U013187

○

○

○

U015587

○

○

○

Forward Recognition Camera

(Road Sign Assist System)

U010087

○

○

○

U012587

○

○

○

U012987

○

○

○

U014087

○

○

○

U015587

○

○

○

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

○

○

○

U0126

○

○

○

U0129

○

○

○

U0140

○

○

○

U0163

○

○

○

U0233

○

○

○

U023B

○

○

○

U1110

○

○

○

Television Camera Controller*1

U0100

○

○

○

U0126

○

○

○

U0129

○

○

○

U0140

○

○

○

U0163

○

○

○

U0233

○

○

○

U0265

○

○

○

U1110

○

○

○

Clearance Warning ECU Assembly*1

U010087

○

○

○

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U014087

○

○

○

U015587

○

○

○

U016487

○

○

○

U023387

○

○

○

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

-

-

-

U015587

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

○

○

○

U012287

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Bus 3

Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

○

○

○

U0265

○

○

○

U1110

○

○

○

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

-

-

-

U010187

-

-

-

U012587

-

-

-

U012687

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U023A

○

○

○

Occupant Detection ECU

U0125

-

-

-

U0129

-

-

-

4WD ECU Assembly*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0131

-

-

-

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

Bus 5

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0126

-

-

-

U0129

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

○

○

○

U0327

-

-

-

U1106

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Combination Meter Assembly

U010087

-

-

-

U011487

-

-

-

U012987

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

U016387

-

-

-

U016487

-

-

-

U023387

○

○

○

U023A87

○

○

○

U032787

-

-

-

U110687

-

-

-

U111087

○

○

○

U111287

-

-

-

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

○

○

○

U111087

○

○

○

DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 2, PAST COMMUNICATION ERROR)

(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 2 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.

HINT:

  • Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
  • If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
  • ○: DTC is output.
  • -: DTC is not output.
  • *1: DTC U0073 may be stored when communication is lost.
  • *2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
  • If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
  • If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.

-

Trouble Mode

Open in CAN main bus line(s)

Output ECU

Output DTC

Central Gateway ECU (Network Gateway ECU)

No. 4 CAN Junction Connector to No. 2 CAN Junction Connector

ECM Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

○

○

○

U0125

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U015587

-

-

-

U110687

-

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

Bus 1

Forward Recognition Camera

(Front Camera System)

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lighting System)

U010087

○

○

○

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lane Control System)

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

U015587

-

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

○

○

○

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

○

○

○

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U023B

-

-

-

U1110

-

-

-

Television Camera Controller*1

U0100

○

○

○

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016487

-

-

-

U023387

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

○

○

○

U015587

○

○

○

Bus 2

ECM

(Dynamic Radar Cruise Control System)

U010487

○

○

○

U012287

○

○

○

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

○

○

○

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

-

-

-

U0265

-

-

-

U1110

-

-

-

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

○

○

○

U010187

-

-

-

U012587

-

-

-

U012687

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

○

○

○

U0126

-

-

-

U0129

-

-

-

U023A

-

-

-

Occupant Detection ECU

U0125

-

-

-

U0129

-

-

-

4WD ECU Assembly*1

U0100

○

○

○

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

○

○

○

U0131

-

-

-

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

Bus 5

Main Body ECU (Multiplex Network Body ECU)

U0100

○

○

○

U0101

○

○

○

U0120

-

-

-

U0126

-

-

-

U0129

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

-

-

-

U0327

-

-

-

U1106

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

○

○

○

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

○

○

○

U0140

-

-

-

U0155

-

-

-

Combination Meter Assembly

U010087

○

○

○

U011487

-

-

-

U012987

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

U016387

-

-

-

U016487

-

-

-

U023387

-

-

-

U023A87

-

-

-

U032787

-

-

-

U110687

-

-

-

U111087

-

-

-

U111287

-

-

-

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

○

○

○

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

-

-

-

U111087

-

-

-

-

Trouble Mode

CAN bus lines short circuit or short to GND

Output ECU

Output DTC

CANH to CANL

CANH Short to Ground

CANL Short to Ground

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Bus 1

Blind Spot Monitor Sensor RH

U0100

○

○

○

U0125

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U015587

-

-

-

U110687

-

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

Forward Recognition Camera

(Front Camera System)

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lighting System)

U010087

○

○

○

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lane Control System)

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

U015587

-

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

○

○

○

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

○

○

○

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U023B

-

-

-

U1110

-

-

-

Bus 1

Television Camera Controller*1

U0100

○

○

○

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

○

○

○

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016487

-

-

-

U023387

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

○

○

○

U015587

○

○

○

ECM

(Dynamic Radar Cruise Control System)

U010487

○

○

○

U012287

○

○

○

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

○

○

○

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

-

-

-

U0265

-

-

-

U1110

-

-

-

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

○

○

○

U010187

○

○

○

U012587

-

-

-

U012687

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

Bus 4

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

○

○

○

U0126

-

-

-

U0129

-

-

-

U023A

-

-

-

Occupant Detection ECU

U0125

-

-

-

U0129

-

-

-

4WD ECU Assembly*1

U0100

○

○

○

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

○

○

○

U0131

-

-

-

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

○

○

○

U0101

○

○

○

U0120

-

-

-

U0126

-

-

-

U0129

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

-

-

-

U0327

-

-

-

U1106

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

○

○

○

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

○

○

○

U0140

-

-

-

U0155

-

-

-

Bus 5

Combination Meter Assembly

U010087

○

○

○

U011487

-

-

-

U012987

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

U016387

-

-

-

U016487

-

-

-

U023387

-

-

-

U023A87

-

-

-

U032787

-

-

-

U110687

-

-

-

U111087

-

-

-

U111287

-

-

-

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

○

○

○

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

-

-

-

U111087

-

-

-

DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 3, PAST COMMUNICATION ERROR)

(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 3 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.

HINT:

  • Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
  • If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
  • ○: DTC is output.
  • -: DTC is not output.
  • *1: DTC U0073 may be stored when communication is lost.
  • *2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
  • If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
  • If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Radio Receiver Assembly Communication Stop Mode

DCM Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

U0125

-

-

U0126

-

-

U0129

-

-

U0142

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U015587

-

-

U110687

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U013187

-

-

Forward Recognition Camera

(Front Camera System)

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U014087

-

-

Forward Recognition Camera

(Lighting System)

U010087

-

-

U012587

-

-

U012987

-

-

U014087

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U013187

-

-

U015587

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

U012587

-

-

U012987

-

-

U014087

-

-

U015587

-

-

Bus 1

Millimeter Wave Radar Sensor Assembly

-

-

-

Rear Television Camera Assembly

U0100

-

-

U0126

-

-

U0129

-

-

U0140

-

-

U0163

○

-

U0233

-

-

U023B

-

-

U1110

-

-

Television Camera Controller*1

U0100

-

-

U0126

-

-

U0129

-

-

U0140

-

-

U0163

○

-

U0233

-

-

U0265

-

-

U1110

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U014087

-

-

U015587

-

-

U016487

-

-

U023387

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

ECM

U012987

-

-

U015587

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

U012287

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Radio and Display Receiver Assembly*1

U0100

○

-

U0129

○

-

U0140

○

-

U0155

○

-

U0164

○

-

U0198

○

○

U023B

○

-

U0265

○

-

U1110

○

-

DCM (Telematics Transceiver)

U014087

-

○

U015587

-

○

U016387

○

○

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Bus 4

Airbag Sensor Assembly

U0154

-

-

Brake Actuator Assembly*1

U010087

-

-

U010187

-

-

U012587

-

-

U012687

-

-

U013187

-

-

U014087

-

-

U015187

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

U0126

-

-

U0129

-

-

U023A

-

-

Occupant Detection ECU

U0125

-

-

U0129

-

-

4WD ECU Assembly*1

U0100

-

-

U0126

-

-

U0129

-

-

Steering Sensor

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

U0131

-

-

U0142

-

-

U0151

-

-

U0155

-

-

U0163

○

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

U0101

-

-

U0120

-

-

U0126

-

-

U0129

-

-

U0151

-

-

U0155

-

-

U0163

○

-

U0164

-

-

U023A

-

-

U0327

-

-

U1106

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

U0142

-

-

U0155

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

U0140

-

-

U0155

-

-

Bus 5

Combination Meter Assembly

U010087

-

-

U011487

-

-

U012987

-

-

U013187

-

-

U014087

-

-

U015187

-

-

U016387

○

-

U016487

-

-

U023387

-

-

U023A87

-

-

U032787

-

-

U110687

-

-

U111087

-

-

U111287

-

-

U113387

-

-

Meter Mirror Sub-assembly

U010087

-

-

U012987

-

-

U014087

-

-

U015587

-

-

U016387

○

-

U016487

-

-

U023A87

-

-

U111087

-

-

-

Trouble Mode

Open in CAN main bus line(s)

Output ECU

Output DTC

Central Gateway ECU (Network Gateway ECU) (CA3H and CA3L Terminal)

Central Gateway ECU (Network Gateway ECU) (CAYH and CAYL Terminal)

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

U0125

-

-

U0126

-

-

U0129

-

-

U0142

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U015587

-

-

U110687

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U013187

-

-

Forward Recognition Camera

(Front Camera System)

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U014087

-

-

Bus 1

Forward Recognition Camera

(Lighting System)

U010087

-

-

U012587

-

-

U012987

-

-

U014087

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U013187

-

-

U015587

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

U012587

-

-

U012987

-

-

U014087

-

-

U015587

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

Rear Television Camera Assembly

U0100

-

-

U0126

-

-

U0129

-

-

U0140

-

-

U0163

○

-

U0233

-

-

U023B

-

-

U1110

-

-

Television Camera Controller*1

U0100

-

-

U0126

-

-

U0129

-

-

U0140

-

-

U0163

○

-

U0233

-

-

U0265

-

-

U1110

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

U012587

-

-

U012687

-

-

U012987

-

-

U014087

-

-

U015587

-

-

U016487

-

-

U023387

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

ECM

U012987

-

-

U015587

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

U012287

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Bus 3

Radio and Display Receiver Assembly*1

U0100

○

-

U0129

○

-

U0140

○

-

U0155

○

-

U0164

○

-

U0198

-

-

U023B

○

-

U0265

○

-

U1110

○

-

DCM (Telematics Transceiver)

U014087

○

-

U015587

○

-

U016387

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Airbag Sensor Assembly

U0154

-

-

Brake Actuator Assembly*1

U010087

-

-

U010187

-

-

U012587

-

-

U012687

-

-

U013187

-

-

U014087

-

-

U015187

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

U0126

-

-

U0129

-

-

U023A

-

-

Occupant Detection ECU

U0125

-

-

U0129

-

-

4WD ECU Assembly*1

U0100

-

-

U0126

-

-

U0129

-

-

Steering Sensor

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

U0131

-

-

U0142

-

-

U0151

-

-

U0155

-

-

U0163

○

-

Bus 5

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

U0101

-

-

U0120

-

-

U0126

-

-

U0129

-

-

U0151

-

-

U0155

-

-

U0163

-

-

U0164

-

-

U023A

-

-

U0327

-

-

U1106

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

U0142

-

-

U0155

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

U0140

-

-

U0155

-

-

Combination Meter Assembly

U010087

-

-

U011487

-

-

U012987

-

-

U013187

-

-

U014087

-

-

U015187

-

-

U016387

○

-

U016487

-

-

U023387

-

-

U023A87

-

-

U032787

-

-

U110687

-

-

U111087

-

-

U111287

-

-

U113387

-

-

Meter Mirror Sub-assembly

U010087

-

-

U012987

-

-

U014087

-

-

U015587

-

-

U016387

○

-

U016487

-

-

U023A87

-

-

U111087

-

-

-

Trouble Mode

CAN bus lines short circuit or short to GND

Output ECU

Output DTC

CANH to CANL

CANH Short to Ground

CANL Short to Ground

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Bus 1

Blind Spot Monitor Sensor RH

U0100

-

-

-

U0125

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U015587

-

-

-

U110687

-

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

U015587

-

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

○

○

○

U0233

-

-

-

U023B

-

-

-

U1110

-

-

-

Bus 1

Television Camera Controller*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

○

○

○

U0233

-

-

-

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016487

-

-

-

U023387

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

-

-

-

U015587

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

U012287

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

○

○

○

U0129

○

○

○

U0140

○

○

○

U0155

○

○

○

U0164

○

○

○

U0198

○

○

○

U023B

○

○

○

U0265

○

○

○

U1110

○

○

○

DCM (Telematics Transceiver)

U014087

○

○

○

U015587

○

○

○

U016387

○

○

○

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

-

-

-

U010187

-

-

-

U012587

-

-

-

U012687

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

Bus 4

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U023A

-

-

-

Occupant Detection ECU

U0125

-

-

-

U0129

-

-

-

4WD ECU Assembly*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0131

-

-

-

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

○

○

○

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0126

-

-

-

U0129

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

○

○

○

U0164

-

-

-

U023A

-

-

-

U0327

-

-

-

U1106

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Bus 5

Combination Meter Assembly

U010087

-

-

-

U011487

-

-

-

U012987

-

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

U016387

○

○

○

U016487

-

-

-

U023387

-

-

-

U023A87

-

-

-

U032787

-

-

-

U110687

-

-

-

U111087

-

-

-

U111287

-

-

-

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016387

○

○

○

U016487

-

-

-

U023A87

-

-

-

U111087

-

-

-

DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 4, PAST COMMUNICATION ERROR)

(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 4 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.

HINT:

  • Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
  • If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
  • ○: DTC is output.
  • -: DTC is not output.
  • *1: DTC U0073 may be stored when communication is lost.
  • *2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
  • If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
  • If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Restraints Occupant Classification System Module Communication Stop Mode

Tire Pressure Monitor ECU Communication Stop Mode

Power Steering ECU Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

-

U0125

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

-

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U015587

-

-

-

U110687

-

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

○

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

○

U015587

-

-

-

Bus 1

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

U012587

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U023B

-

-

-

U1110

-

-

-

Television Camera Controller*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016487

-

-

-

U023387

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

-

-

-

U015587

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

U012287

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

-

-

-

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

-

-

-

U0265

-

-

-

U1110

-

-

-

Bus 3

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

○

-

-

Brake Actuator Assembly*1

U010087

-

-

-

U010187

-

-

-

U012587

-

-

-

U012687

-

-

-

U013187

-

-

○

U014087

-

-

-

U015187

-

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

○

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

○

U0126

-

-

○

U0129

-

-

○

U023A

-

-

○

Occupant Detection ECU

U0125

○

-

-

U0129

○

-

-

4WD ECU Assembly*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0131

-

-

○

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0126

-

-

-

U0129

-

-

○

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

-

-

-

U0327

-

-

-

U1106

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Bus 5

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Combination Meter Assembly

U010087

-

-

-

U011487

-

-

-

U012987

-

-

-

U013187

-

-

○

U014087

-

-

-

U015187

-

-

-

U016387

-

-

-

U016487

-

-

-

U023387

-

-

-

U023A87

-

-

-

U032787

-

-

-

U110687

-

-

-

U111087

-

-

-

U111287

-

-

-

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

U012987

-

-

-

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

-

-

-

U111087

-

-

-

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Skid Control ECU Communication Stop Mode

4WD Control ECU Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

-

U0125

-

-

-

U0126

-

-

○

U0129

○

-

-

U0142

-

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

○

U012987

○

-

-

U015587

-

-

-

U110687

○

-

-

Bus 1

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

○

U012987

○

-

-

U013187

-

-

-

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

○

U012987

○

-

-

U014087

-

-

-

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

U012587

-

-

-

U012987

○

-

-

U014087

-

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

○

U012987

○

-

-

U013187

-

-

-

U015587

-

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

U012587

-

-

-

U012987

○

-

-

U014087

-

-

-

U015587

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

-

-

-

U0126

-

-

○

U0129

○

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U023B

-

-

-

U1110

-

-

-

Television Camera Controller*1

U0100

-

-

-

U0126

-

-

○

U0129

○

-

-

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

U012587

-

-

-

U012687

-

-

○

U012987

○

-

-

U014087

-

-

-

U015587

-

-

-

U016487

-

-

-

U023387

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

○

-

-

U015587

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

U012287

○

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

○

-

-

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

-

-

-

U0265

-

-

-

U1110

-

-

-

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

○

-

-

U010187

○

-

-

U012587

○

-

-

U012687

○

-

○

U013187

○

-

-

U014087

○

-

-

U015187

○

-

-

Tire Pressure Warning ECU and Receiver

U0129

○

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

U0126

-

-

○

U0129

○

-

-

U023A

-

-

-

Occupant Detection ECU

U0125

-

-

-

U0129

○

-

-

4WD ECU Assembly*1

U0100

-

○

-

U0126

-

○

○

U0129

○

○

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Bus 5

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0131

-

-

-

U0142

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0126

-

-

○

U0129

-

-

-

U0151

-

-

-

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

-

-

-

U0327

-

-

-

U1106

○

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Combination Meter Assembly

U010087

-

-

-

U011487

-

○

-

U012987

○

-

-

U013187

-

-

-

U014087

-

-

-

U015187

-

-

-

U016387

-

-

-

U016487

-

-

-

U023387

-

-

-

U023A87

-

-

-

U032787

-

-

-

U110687

○

-

-

U111087

-

-

-

U111287

-

-

○

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

U012987

○

-

-

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

-

-

-

U111087

-

-

-

-

Trouble Mode

Open in CAN main bus line(s)

Output ECU

Output DTC

Central Gateway ECU (Network Gateway ECU)

No. 3 Junction Connector to No. 2 CAN Junction Connector

No. 2 CAN Junction Connector to No. 4 CAN Junction Connector

Center Airbag Sensor Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

-

-

U0125

○

○

○

○

U0126

○

○

○

-

U0129

○

○

-

-

U0142

-

-

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

-

U012587

○

○

○

○

U012687

○

○

○

-

U012987

○

○

-

-

U015587

-

-

-

-

U110687

○

○

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

-

U012587

○

○

○

○

U012687

○

○

○

-

U012987

○

○

-

-

U013187

○

○

-

-

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

-

U012587

○

○

○

○

U012687

○

○

○

-

U012987

○

○

-

-

U014087

-

-

-

-

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

-

U012587

○

○

○

○

U012987

○

○

-

-

U014087

-

-

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

-

U012587

○

○

○

○

U012687

○

○

○

-

U012987

○

○

-

-

U013187

○

○

-

-

U015587

-

-

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

-

U012587

○

○

○

○

U012987

○

○

-

-

U014087

-

-

-

-

U015587

-

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

-

Bus 1

Rear Television Camera Assembly

U0100

-

-

-

-

U0126

○

○

○

-

U0129

○

○

-

-

U0140

-

-

-

-

U0163

-

-

-

-

U0233

-

-

-

-

U023B

-

-

-

-

U1110

-

-

-

-

Television Camera Controller*1

U0100

-

-

-

-

U0126

○

○

○

-

U0129

○

○

-

-

U0140

-

-

-

-

U0163

-

-

-

-

U0233

-

-

-

-

U0265

-

-

-

-

U1110

-

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

-

U012587

○

○

○

○

U012687

○

○

○

-

U012987

○

○

-

-

U014087

-

-

-

-

U015587

-

-

-

-

U016487

-

-

-

-

U023387

-

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

ECM

U012987

○

○

-

-

U015587

-

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

-

U012287

○

○

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

-

-

-

-

U0129

○

○

-

-

U0140

-

-

-

-

U0155

-

-

-

-

U0164

-

-

-

-

U0198

-

-

-

-

U023B

-

-

-

-

U0265

-

-

-

-

U1110

-

-

-

-

DCM (Telematics Transceiver)

U014087

-

-

-

-

U015587

-

-

-

-

U016387

-

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Airbag Sensor Assembly

U0154

-

○

○

○

Bus 4

Brake Actuator Assembly*1

U010087

○

○

-

-

U010187

○

○

-

-

U012587

-

-

○

○

U012687

-

-

○

-

U013187

-

-

-

-

U014087

○

○

-

-

U015187

-

-

○

○

Tire Pressure Warning ECU and Receiver

U0129

-

○

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

○

○

-

-

U0126

-

-

○

-

U0129

-

-

-

-

U023A

○

○

-

-

Occupant Detection ECU

U0125

-

○

○

○

U0129

-

○

-

-

4WD ECU Assembly*1

U0100

○

○

-

-

U0126

-

-

○

-

U0129

-

-

-

-

Steering Sensor

-

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

-

U0131

○

○

-

-

U0142

-

-

-

-

U0151

○

○

○

○

U0155

-

-

-

-

U0163

-

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

-

U0101

-

-

-

-

U0120

-

-

-

-

U0126

○

○

○

-

U0129

○

○

-

-

U0151

○

○

○

○

U0155

-

-

-

-

U0163

-

-

-

-

U0164

-

-

-

-

U023A

-

-

-

-

U0327

-

-

-

-

U1106

○

○

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

-

U0142

-

-

-

-

U0155

-

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

-

U0140

-

-

-

-

U0155

-

-

-

-

Bus 5

Combination Meter Assembly

U010087

-

-

-

-

U011487

○

○

-

-

U012987

○

○

-

-

U013187

○

○

-

-

U014087

-

-

-

-

U015187

○

○

○

○

U016387

-

-

-

-

U016487

-

-

-

-

U023387

-

-

-

-

U023A87

-

-

-

-

U032787

-

-

-

-

U110687

○

○

-

-

U111087

-

-

-

-

U111287

○

○

○

-

U113387

-

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

-

U012987

○

○

-

-

U014087

-

-

-

-

U015587

-

-

-

-

U016387

-

-

-

-

U016487

-

-

-

-

U023A87

-

-

-

-

U111087

-

-

-

-

-

Trouble Mode

CAN bus lines short circuit or short to GND

Output ECU

Output DTC

CANH to CANL

CANH Short to Ground

CANL Short to Ground

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

-

U0125

○

○

○

U0126

○

○

○

U0129

○

○

○

U0142

-

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U015587

-

-

-

U110687

○

○

○

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U013187

○

○

○

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U014087

-

-

-

Bus 1

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

U012587

○

○

○

U012987

○

○

○

U014087

-

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U013187

○

○

○

U015587

-

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

U012587

○

○

○

U012987

○

○

○

U014087

-

-

-

U015587

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

-

-

-

U0126

○

○

○

U0129

○

○

○

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U023B

-

-

-

U1110

-

-

-

Television Camera Controller*1

U0100

-

-

-

U0126

○

○

○

U0129

○

○

○

U0140

-

-

-

U0163

-

-

-

U0233

-

-

-

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

U012587

○

○

○

U012687

○

○

○

U012987

○

○

○

U014087

-

-

-

U015587

-

-

-

U016487

-

-

-

U023387

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

○

○

○

U015587

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

U012287

○

○

○

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Bus 3

Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

○

○

○

U0140

-

-

-

U0155

-

-

-

U0164

-

-

-

U0198

-

-

-

U023B

-

-

-

U0265

-

-

-

U1110

-

-

-

DCM (Telematics Transceiver)

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

○

○

○

Brake Actuator Assembly*1

U010087

○

○

○

U010187

○

○

○

U012587

○

○

○

U012687

○

○

○

U013187

○

○

○

U014087

○

○

○

U015187

○

○

○

Tire Pressure Warning ECU and Receiver

U0129

○

○

○

Rack and Pinion Power Steering Gear Assembly

U0100

○

○

○

U0126

○

○

○

U0129

○

○

○

U023A

○

○

○

Occupant Detection ECU

U0125

○

○

○

U0129

○

○

○

4WD ECU Assembly*1

U0100

○

○

○

U0126

○

○

○

U0129

○

○

○

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

-

-

-

U0131

○

○

○

U0142

-

-

-

U0151

○

○

○

U0155

-

-

-

U0163

-

-

-

Bus 5

Main Body ECU (Multiplex Network Body ECU)

U0100

-

-

-

U0101

-

-

-

U0120

-

-

-

U0126

○

○

○

U0129

○

○

○

U0151

○

○

○

U0155

-

-

-

U0163

-

-

-

U0164

-

-

-

U023A

-

-

-

U0327

-

-

-

U1106

○

○

○

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

U0142

-

-

-

U0155

-

-

-

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

U0140

-

-

-

U0155

-

-

-

Combination Meter Assembly

U010087

-

-

-

U011487

○

○

○

U012987

○

○

○

U013187

○

○

○

U014087

-

-

-

U015187

○

○

○

U016387

-

-

-

U016487

-

-

-

U023387

-

-

-

U023A87

-

-

-

U032787

-

-

-

U110687

○

○

○

U111087

-

-

-

U111287

○

○

○

U113387

-

-

-

Meter Mirror Sub-assembly

U010087

-

-

-

U012987

○

○

○

U014087

-

-

-

U015587

-

-

-

U016387

-

-

-

U016487

-

-

-

U023A87

-

-

-

U111087

-

-

-

DTC COMBINATION TABLE (OPEN OR SHORT IN BUS 5, PAST COMMUNICATION ERROR)

(a) If DTCs indicating a past communication error of an ECU or sensor connected to Bus 5 are output (but the bus is normal when performing the CAN bus check), the probable area that had a malfunction can be determined based on the following DTC combination table.

HINT:

  • Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
  • If there is an open in a CAN branch line or a communication stop is currently occurring, the malfunctioning area can easily be determined by performing a CAN bus check using the Techstream to determine which ECU or sensor that is connected to the branch line is not responding (the ECU or sensor has a background color of red).
  • ○: DTC is output.
  • -: DTC is not output.
  • *1: DTC U0073 may be stored when communication is lost.
  • *2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
  • If an open occurs in just one of the wires of a CAN branch line, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.
  • If an open occurs in just one of the wires of a CAN branch line, even if the values in the following tables are "-", DTCs which are not related to malfunctioning parts may be output, or a message indicating a communication error may be displayed.

-

Trouble Mode

Open in CAN branch line(s)

Output ECU

Output DTC

Air Conditioning Amplifier Communication Stop Mode

Main Body ECU Communication Stop Mode

Headup Display Communication Stop Mode

Certification ECU Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

-

-

U0125

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

U0142

-

○

-

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U015587

-

-

-

-

U110687

-

-

-

-

Bus 1

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U013187

-

-

-

-

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U014087

-

○

-

-

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

-

U012587

-

-

-

-

U012987

-

-

-

-

U014087

-

○

-

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U013187

-

-

-

-

U015587

-

-

-

-

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

-

U012587

-

-

-

-

U012987

-

-

-

-

U014087

-

○

-

-

U015587

-

-

-

-

Millimeter Wave Radar Sensor Assembly

-

-

-

-

-

Rear Television Camera Assembly

U0100

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

U0140

-

○

-

-

U0163

-

-

-

-

U0233

-

-

-

-

U023B

-

-

-

-

U1110

-

-

-

-

Television Camera Controller*1

U0100

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

U0140

-

○

-

-

U0163

-

-

-

-

U0233

-

-

-

-

U0265

-

-

-

-

U1110

-

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U014087

-

○

-

-

U015587

-

-

-

-

U016487

○

-

-

-

U023387

-

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

ECM

U012987

-

-

-

-

U015587

-

-

-

-

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

-

U012287

-

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

-

-

-

-

U0129

-

-

-

-

U0140

-

○

-

-

U0155

-

-

-

-

U0164

○

-

-

-

U0198

-

-

-

-

U023B

-

-

-

-

U0265

-

-

-

-

U1110

-

-

-

-

DCM (Telematics Transceiver)

U014087

-

○

-

-

U015587

-

-

-

-

U016387

-

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

-

Brake Actuator Assembly*1

U010087

-

-

-

-

U010187

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U013187

-

-

-

-

U014087

-

○

-

-

U015187

-

-

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

U023A

-

-

-

-

Occupant Detection ECU

U0125

-

-

-

-

U0129

-

-

-

-

4WD ECU Assembly*1

U0100

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

Steering Sensor

-

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Bus 5

Air Conditioning Amplifier Assembly

U0100

○

-

-

-

U0131

○

-

-

-

U0142

○

○

-

-

U0151

○

-

-

-

U0155

○

-

-

-

U0163

○

-

-

-

Main Body ECU (Multiplex Network Body ECU)

U0100

-

○

-

-

U0101

-

○

-

-

U0120

-

○

-

○

U0126

-

○

-

-

U0129

-

○

-

-

U0151

-

○

-

-

U0155

-

○

-

-

U0163

-

○

-

-

U0164

○

○

-

-

U023A

-

○

-

-

U0327

-

○

-

○

U1106

-

○

-

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

-

-

-

○

U0142

-

○

-

○

U0155

-

-

-

○

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

-

-

-

○

U0140

-

○

-

○

U0155

-

-

-

○

Combination Meter Assembly

U010087

-

-

-

-

U011487

-

-

-

-

U012987

-

-

-

-

U013187

-

-

-

-

U014087

-

○

-

-

U015187

-

-

-

-

U016387

-

-

-

-

U016487

○

-

-

-

U023387

-

-

-

-

U023A87

-

-

-

-

U032787

-

-

-

○

U110687

-

-

-

-

U111087

-

-

-

-

U111287

-

-

-

-

U113387

-

-

-

○

Meter Mirror Sub-assembly

U010087

-

-

○

-

U012987

-

-

○

-

U014087

-

○

○

-

U015587

-

-

○

-

U016387

-

-

○

-

U016487

○

-

○

-

U023A87

-

-

○

-

U111087

-

-

○

-

-

Trouble Mode

Open in CAN main bus line(s)

Output ECU

Output DTC

Central Gateway ECU (Network Gateway ECU)

No. 2 Junction Connector to No. 1 Junction Connector

No. 1 Junction Connector to No. 3 CAN Junction Connector

Combination Meter ECU Communication Stop Mode

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

-

-

U0125

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

U0142

○

○

○

-

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U015587

○

○

○

○

U110687

-

-

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U013187

-

-

-

-

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U014087

○

○

○

-

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

-

U012587

-

-

-

-

U012987

-

-

-

-

U014087

○

○

○

-

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U013187

-

-

-

-

U015587

○

○

○

○

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

-

U012587

-

-

-

-

U012987

-

-

-

-

U014087

○

○

○

-

U015587

○

○

○

○

Millimeter Wave Radar Sensor Assembly

-

-

-

-

-

Bus 1

Rear Television Camera Assembly

U0100

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

U0140

○

○

○

-

U0163

-

-

-

-

U0233

-

-

-

-

U023B

-

-

-

-

U1110

-

-

-

-

Television Camera Controller*1

U0100

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

U0140

○

○

○

-

U0163

-

-

-

-

U0233

-

-

-

-

U0265

-

-

-

-

U1110

-

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U012987

-

-

-

-

U014087

○

○

○

-

U015587

○

○

○

○

U016487

○

○

○

-

U023387

-

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

ECM

U012987

-

-

-

-

U015587

○

○

○

○

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

-

U012287

-

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Radio and Display Receiver Assembly*1

U0100

-

-

-

-

U0129

-

-

-

-

U0140

○

○

○

-

U0155

○

○

○

○

U0164

○

○

○

-

U0198

-

-

-

-

U023B

-

-

-

-

U0265

-

-

-

-

U1110

-

-

-

-

DCM (Telematics Transceiver)

U014087

○

○

○

-

U015587

○

○

○

○

U016387

-

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

-

Bus 4

Brake Actuator Assembly*1

U010087

-

-

-

-

U010187

-

-

-

-

U012587

-

-

-

-

U012687

-

-

-

-

U013187

-

-

-

-

U014087

○

○

○

-

U015187

-

-

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

U023A

-

-

-

-

Occupant Detection ECU

U0125

-

-

-

-

U0129

-

-

-

-

4WD ECU Assembly*1

U0100

-

-

-

-

U0126

-

-

-

-

U0129

-

-

-

-

Steering Sensor

-

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

○

○

○

-

U0131

○

○

○

-

U0142

-

-

-

-

U0151

○

○

○

-

U0155

-

-

-

○

U0163

○

○

○

-

Main Body ECU (Multiplex Network Body ECU)

U0100

○

○

○

-

U0101

○

○

○

-

U0120

-

-

-

-

U0126

○

○

○

-

U0129

○

○

○

-

U0151

○

○

○

-

U0155

-

-

-

○

U0163

○

○

○

-

U0164

-

-

-

-

U023A

○

○

○

-

U0327

-

-

-

-

U1106

○

○

○

-

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

○

○

○

-

U0142

-

-

-

-

U0155

-

-

-

○

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

○

○

○

-

U0140

-

-

-

-

U0155

-

-

-

○

Bus 5

Combination Meter Assembly

U010087

○

○

○

○

U011487

○

○

○

○

U012987

○

○

○

○

U013187

○

○

○

○

U014087

-

-

-

○

U015187

○

○

○

○

U016387

○

○

○

○

U016487

-

-

-

○

U023387

○

○

○

○

U023A87

○

○

○

○

U032787

-

-

-

○

U110687

○

○

○

○

U111087

○

○

○

○

U111287

○

○

○

○

U113387

-

-

-

○

Meter Mirror Sub-assembly

U010087

○

○

○

-

U012987

○

○

○

-

U014087

-

-

-

-

U015587

-

-

-

○

U016387

○

○

○

-

U016487

-

-

-

-

U023A87

○

○

○

-

U111087

○

○

○

-

-

Trouble Mode

CAN bus lines short circuit or short to GND

Output ECU

Output DTC

CANH to CANL

CANH Short to Ground

CANL Short to Ground

Bus 1

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Blind Spot Monitor Sensor RH

U0100

-

-

-

U0125

-

-

-

U0126

-

-

-

U0129

-

-

-

U0142

○

○

○

Forward Recognition Camera

(Dynamic Radar Cruise Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U015587

○

○

○

U110687

-

-

-

Forward Recognition Camera

(Pre-collision System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

Forward Recognition Camera

(Front Camera System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

○

○

○

Bus 1

Forward Recognition Camera

(Lighting System)

U010087

-

-

-

U012587

-

-

-

U012987

-

-

-

U014087

○

○

○

Forward Recognition Camera

(Lane Control System)

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U013187

-

-

-

U015587

○

○

○

Forward Recognition Camera

(Road Sign Assist System)

U010087

-

-

-

U012587

-

-

-

U012987

-

-

-

U014087

○

○

○

U015587

○

○

○

Millimeter Wave Radar Sensor Assembly

-

-

-

-

Rear Television Camera Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0140

○

○

○

U0163

-

-

-

U0233

-

-

-

U023B

-

-

-

U1110

-

-

-

Television Camera Controller*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U0140

○

○

○

U0163

-

-

-

U0233

-

-

-

U0265

-

-

-

U1110

-

-

-

Clearance Warning ECU Assembly*1

U010087

-

-

-

U012587

-

-

-

U012687

-

-

-

U012987

-

-

-

U014087

○

○

○

U015587

○

○

○

U016487

○

○

○

U023387

-

-

-

Bus 2

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

ECM

U012987

-

-

-

U015587

○

○

○

ECM

(Dynamic Radar Cruise Control System)

U010487

-

-

-

U012287

-

-

-

Bus 3

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Bus 3

Radio and Display Receiver Assembly*1

U0100

-

-

-

U0129

-

-

-

U0140

○

○

○

U0155

○

○

○

U0164

○

○

○

U0198

-

-

-

U023B

-

-

-

U0265

-

-

-

U1110

-

-

-

DCM (Telematics Transceiver)

U014087

○

○

○

U015587

○

○

○

U016387

-

-

-

Bus 4

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Airbag Sensor Assembly

U0154

-

-

-

Brake Actuator Assembly*1

U010087

-

-

-

U010187

-

-

-

U012587

-

-

-

U012687

-

-

-

U013187

-

-

-

U014087

○

○

○

U015187

-

-

-

Tire Pressure Warning ECU and Receiver

U0129

-

-

-

Rack and Pinion Power Steering Gear Assembly

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

U023A

-

-

-

Occupant Detection ECU

U0125

-

-

-

U0129

-

-

-

4WD ECU Assembly*1

U0100

-

-

-

U0126

-

-

-

U0129

-

-

-

Steering Sensor

-

-

-

-

Bus 5

Central Gateway ECU (Network Gateway ECU)*2

-

-

-

-

Air Conditioning Amplifier Assembly

U0100

○

○

○

U0131

○

○

○

U0142

○

○

○

U0151

○

○

○

U0155

○

○

○

U0163

○

○

○

Bus 5

Main Body ECU (Multiplex Network Body ECU)

U0100

○

○

○

U0101

○

○

○

U0120

○

○

○

U0126

○

○

○

U0129

○

○

○

U0151

○

○

○

U0155

○

○

○

U0163

○

○

○

U0164

○

○

○

U023A

○

○

○

U0327

○

○

○

U1106

○

○

○

Certification ECU (Smart Key ECU Assembly)

(Entry Function)

U0100

○

○

○

U0142

○

○

○

U0155

○

○

○

Certification ECU (Smart Key ECU Assembly)

(Power Source Switching Function)

U0100

○

○

○

U0140

○

○

○

U0155

○

○

○

Combination Meter Assembly

U010087

○

○

○

U011487

○

○

○

U012987

○

○

○

U013187

○

○

○

U014087

○

○

○

U015187

○

○

○

U016387

○

○

○

U016487

○

○

○

U023387

○

○

○

U023A87

○

○

○

U032787

○

○

○

U110687

○

○

○

U111087

○

○

○

U111287

○

○

○

U113387

○

○

○

Meter Mirror Sub-assembly

U010087

○

○

○

U012987

○

○

○

U014087

○

○

○

U015587

○

○

○

U016387

○

○

○

U016487

○

○

○

U023A87

○

○

○

U111087

○

○

○

    READ NEXT:

     Dtc Check / Clear

    DTC CHECK / CLEAR CHECK FOR DTC (a) Connect the Techstream to the DLC3. (b) Turn the ignition switch to ON. (c) Turn the Techstream on. (d) Enter the following menus: Body Electrical / Central Gat

     Fail-safe Chart

    FAIL-SAFE CHART FAIL-SAFE FUNCTION (a) When communication fails in any of the CAN bus lines (communication lines), a fail-safe function(s) will operate. The fail-safe function that is specified for ea

     Data List / Active Test

    DATA LIST / ACTIVE TEST NOTICE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faul

    SEE MORE:

     Ultrasonic Sensor (Front Right Corner) Missing Message (C1AE487)

    DESCRIPTION This DTC is stored when an open circuit or short occurs in the communication line between the front corner ultrasonic sensor RH and the clearance warning ECU, or when a malfunction occurs in the front corner ultrasonic sensor RH. DTC No. Detection Item DTC Detection Conditio

     Yaw Rate Sensor Circuit Voltage Out of Range (C00631C)

    DESCRIPTION The airbag sensor assembly has a built-in yaw rate and acceleration sensor and detects the vehicle condition. The skid control ECU (brake actuator assembly) calibrates the sensitivity of the yaw rate sensor (airbag sensor assembly) based on signals from the steering angle sensor and sp

    © 2023-2026 Copyright www.tocamry.com
