INSPECTION
PROCEDURE
1. INSPECT SPOT LIGHT ASSEMBLY (for LED Type)
|

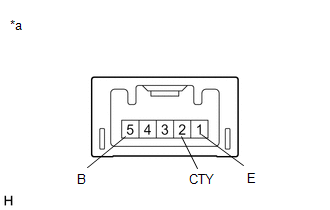

*a | Component without harness connected (Spot Light Assembly) |
(a) Apply battery voltage to the connector and check that the spot light comes on.
OK:
|
Measurement Condition | Condition |
Specified Condition |
|---|---|---|
|
Battery positive (+) > 5 (B) Battery negative (-) > 1 (E) |
Spot light switch LH on |
Spot light LH comes on |
|
Spot light switch RH on |
Spot light RH comes on | |
|
Battery positive (+) > 5 (B) Battery negative (-) > 2 (CTY) |
Spot light switch LH off |
Spot light LH comes on |
|
Spot light switch RH off |
Spot light RH comes on |
If the result is not as specified, replace the spot light assembly.
