Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Sliding Roof / Convertible / Sliding Roof Housing (for Panoramic Moon Roof) / Installation

INSTALLATION

PROCEDURE

1. INSTALL SLIDING ROOF HOUSING ASSEMBLY

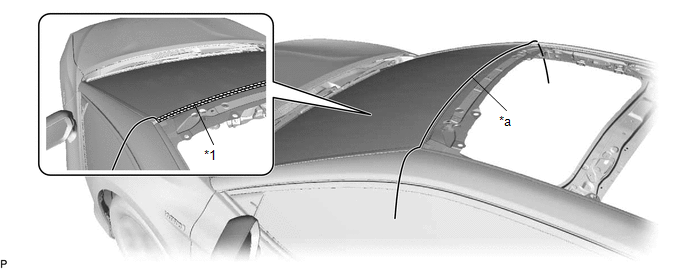

(a) Pass a string under the windshield outside moulding as shown in the illustration.

*1

Windshield Outside Moulding

-

-

*a

String

-

-

(b) Engage the 2 guides.

(c) Temporarily install the sliding roof housing assembly with the 20 nuts.

(d) Tighten the 20 nuts to install the sliding roof housing assembly.

HINT:

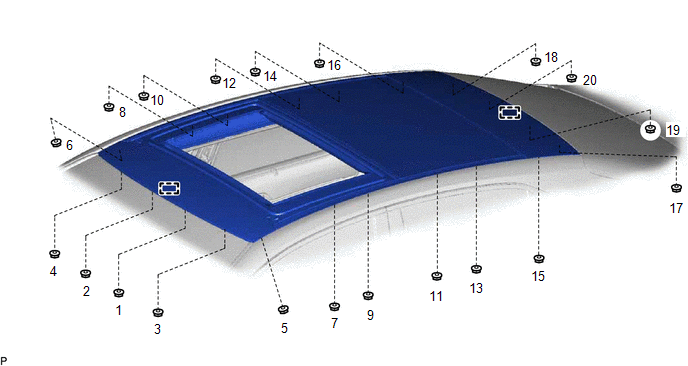

Tighten the nuts in the order shown in the illustration.

Torque:

8.0 N
