Toyota Camry (XV70): Vanity Light
Components
COMPONENTS
ILLUSTRATION
|

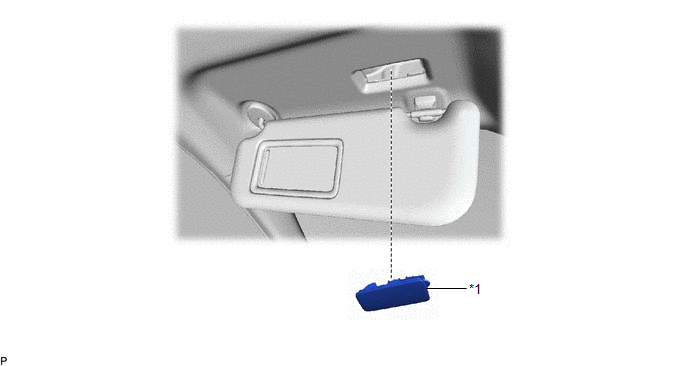

*1 | VANITY LIGHT ASSEMBLY |
- | - |
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE VANITY LIGHT ASSEMBLY

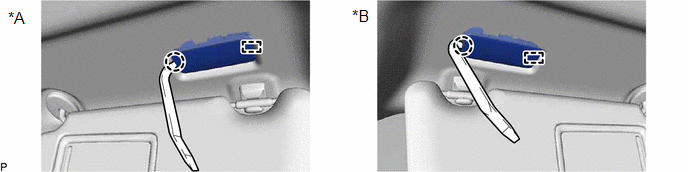

(a) Using a moulding remover, disengage the claw.
|
*A | for LH Side |
*B | for RH Side |
(b) Disengage the guide and pull out the vanity light assembly.
(c) Disconnect the connector to remove the vanity light assembly.
Inspection
INSPECTION
PROCEDURE
1. INSPECT VANITY LIGHT ASSEMBLY

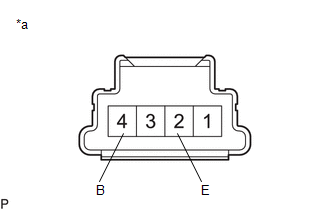

| (a) Apply battery voltage to the vanity light assembly and check that the light illuminates. OK:
If the result is not as specified, replace the vanity light assembly. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL VANITY LIGHT ASSEMBLY
(a) Connect the connector.

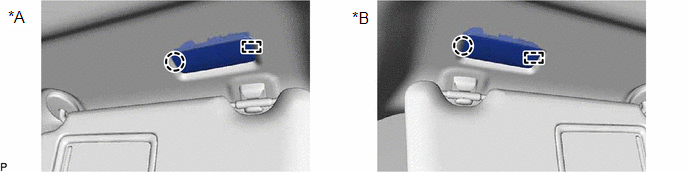

(b) Engage the guide and claw to install the vanity light assembly.
|
*A | for LH Side |
*B | for RH Side |
