Toyota Camry (XV70): Battery

Toyota Camry Repair Manual XV70 (2018-2024) / Power Source, Network / 2gr-fks (battery / Charging) / Battery

Components

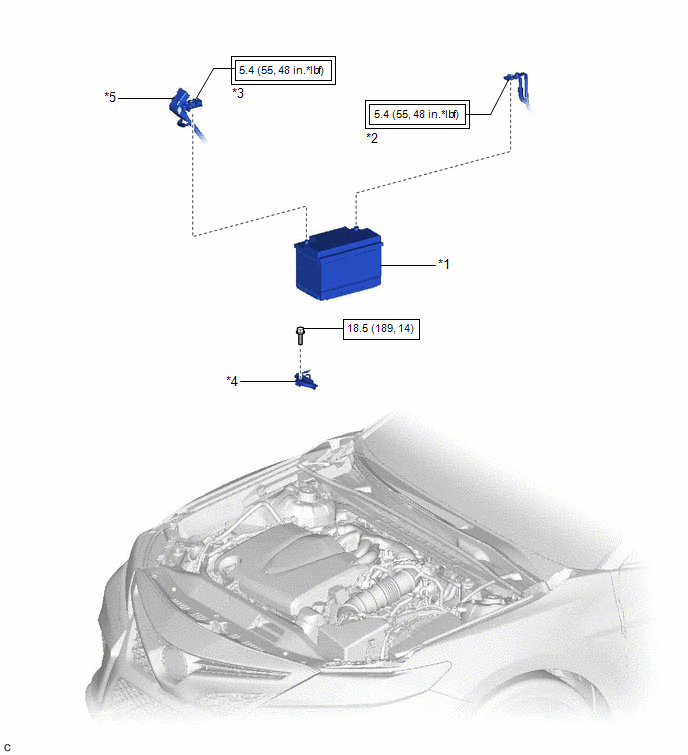

COMPONENTS

ILLUSTRATION

*1

BATTERY

*2

NEGATIVE BATTERY TERMINAL

*3

POSITIVE BATTERY TERMINAL

*4

NO. 2 BATTERY CLAMP

*5

BATTERY TERMINAL CAP

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Removal

REMOVAL

CAUTION / NOTICE / HINT

Click here

Installation

INSTALLATION

CAUTION / NOTICE / HINT

Click here
