Toyota Camry (XV70): Center Airbag Sensor Communication Stop Mode

Toyota Camry Repair Manual XV70 (2018-2024) / Power Source, Network / Networking / Can Communication System / Center Airbag Sensor Communication Stop Mode

DESCRIPTION

Detection Item

Symptom

Trouble Area

Center Airbag Sensor Communication Stop Mode

Any of the following conditions are met:

  • Communication stop for "Airbag" is indicated on the "Communication Bus Check" screen of the Techstream.

    Click here

  • Communication stop history for "Airbag" is indicated on the "Communication Bus Check (Detail)" screen of the Techstream. (The Lost Communication Time value for "Airbag" is 6 or more.)

    Click here

  • Communication system DTCs (DTCs that start with U) that correspond to "Center Airbag Sensor Communication Stop Mode" in "DTC Combination Table" are output.

    Click here

  • Airbag sensor assembly main line or connector
  • Power source circuit of airbag sensor assembly
  • Airbag sensor assembly ground circuit
  • Airbag sensor assembly

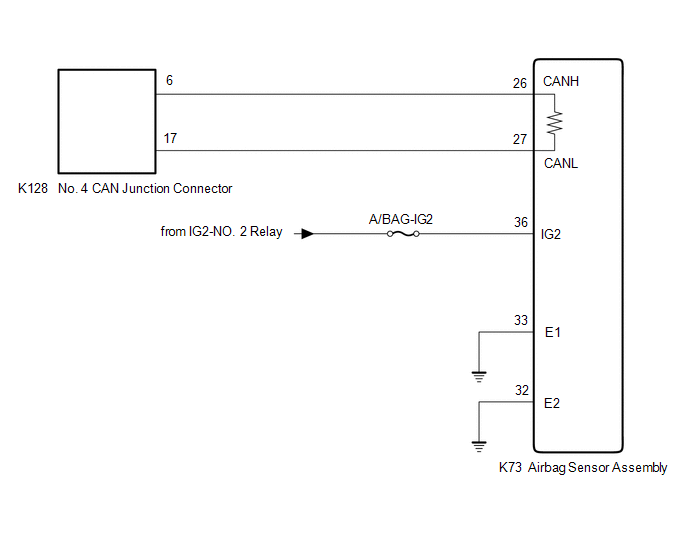

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

NOTICE:

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
  • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

    DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

HINT:

  • Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
  • When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE

1.

CHECK FOR OPEN IN CAN BUS LINES (AIRBAG SENSOR ASSEMBLY MAIN LINE)

(a) Disconnect the cable from the negative (-) battery terminal.

(b) Disconnect the K73 airbag sensor assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

K73-26 (CANH) - K73-27 (CANL)

Cable disconnected from negative (-) battery terminal

108 to 132 Ω

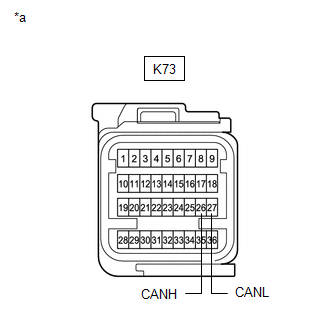

*a

Front view of wire harness connector

(to Airbag Sensor Assembly)
NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (AIRBAG SENSOR ASSEMBLY)
OK

2.

CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

K73-32 (E2) - Body ground

Cable disconnected from negative (-) battery terminal

Below 1 Ω

K73-33 (E1) - Body ground

Cable disconnected from negative (-) battery terminal

Below 1 Ω

*a

Front view of wire harness connector

(to Airbag Sensor Assembly)

(b) Reconnect the cable to the negative (-) battery terminal.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

K73-36 (IG2) - Body ground

Ignition switch ON

11 to 14 V
OK

REPLACE AIRBAG SENSOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
