Toyota Camry (XV70): Components
COMPONENTS

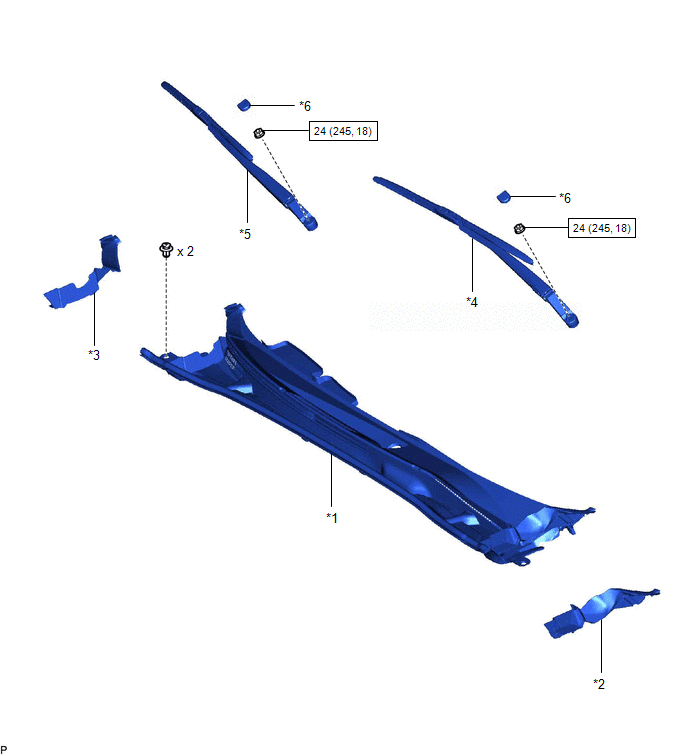

ILLUSTRATION
|
*1 | COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY |
*2 | FRONT FENDER TO COWL SIDE SEAL LH |
|
*3 | FRONT FENDER TO COWL SIDE SEAL RH |
*4 | FRONT WIPER ARM AND BLADE ASSEMBLY LH |
|
*5 | FRONT WIPER ARM AND BLADE ASSEMBLY RH |
*6 | FRONT WIPER ARM HEAD CAP |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
ILLUSTRATION
|
*A | for 1-piece Type |
*B | for 2-piece Type |
|
*C | for TMC Made |
- | - |
|
*1 | FRONT WINDOW INNER CENTER MOULDING |
*2 | NO. 1 WINDSHIELD GLASS STOPPER |
|
*3 | NO. 2 WINDSHIELD GLASS STOPPER |
*4 | WINDOW GLASS ADHESIVE DAM |
|
*5 | WINDSHIELD GLASS |
*6 | WINDSHIELD GLASS SUB-ASSEMBLY |
|
*7 | WINDSHIELD OUTSIDE MOULDING |
- | - |
|
● | Non-reusable part |
- | - |

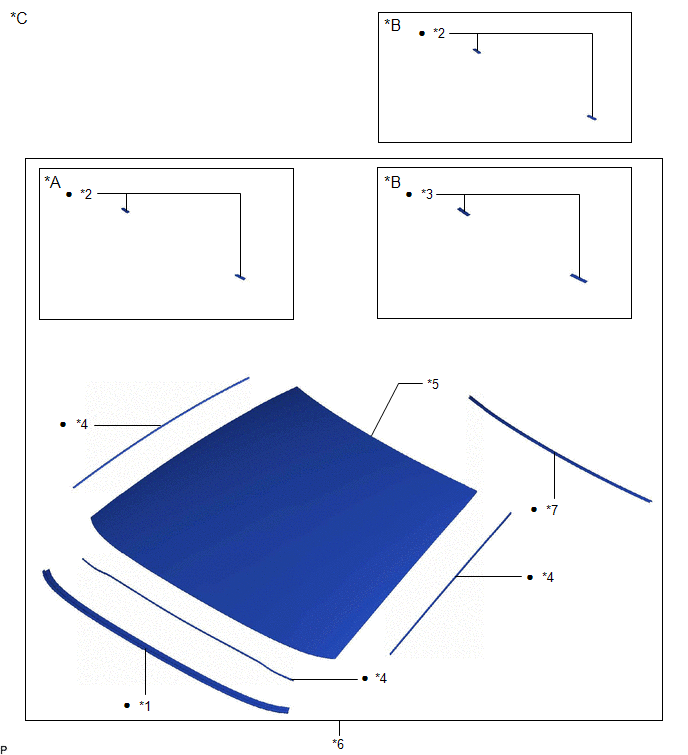

ILLUSTRATION
|
*A | for 1-piece Type |
*B | for 2-piece Type |
|
*C | for TMMK Made |
- | - |
|
*1 | FRONT WINDOW INNER CENTER MOULDING |
*2 | NO. 1 WINDSHIELD GLASS STOPPER |
|
*3 | NO. 2 WINDOW GLASS ADHESIVE DAM |
*4 | NO. 2 WINDSHIELD GLASS STOPPER |
|
*5 | WINDOW GLASS ADHESIVE DAM |
*6 | WINDSHIELD GLASS |
|
*7 | WINDSHIELD GLASS SUB-ASSEMBLY |
*8 | WINDSHIELD OUTSIDE MOULDING |
|
● | Non-reusable part |
- | - |
