Toyota Camry (XV70): Components
Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Wiper / Washer / Wiper Switch / Components
COMPONENTS

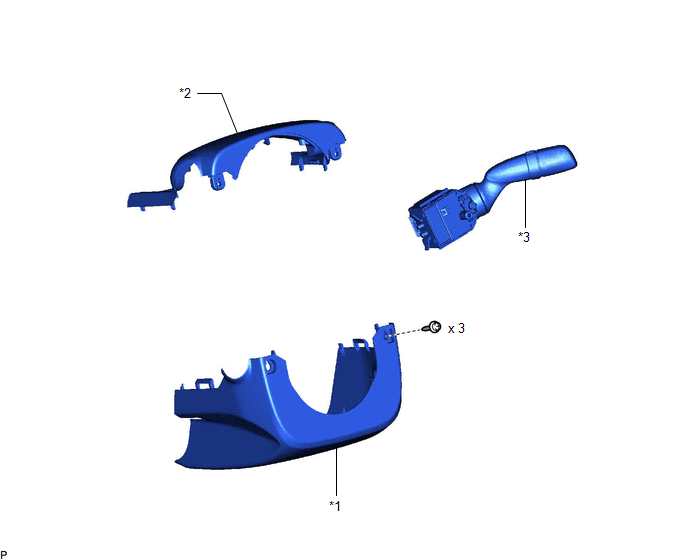

ILLUSTRATION
|
*1 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY |
*2 | UPPER STEERING COLUMN COVER |
|
*3 | WINDSHIELD WIPER SWITCH ASSEMBLY |
- | - |
READ NEXT:
Removal
REMOVAL PROCEDURE 1. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY
NOTICE: Removing the lower steering column cover sub-assembly in the incorrect order will cause the parts to break.
(a) Release
Inspection
INSPECTION PROCEDURE 1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance: Front Wiper Switch
Teste
Installation
INSTALLATION PROCEDURE 1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
(a) Engage the claw as shown in the illustration to install the windshield wiper switch assembly.
Install in this
