Toyota Camry (XV70): Inspection
INSPECTION
PROCEDURE
1. INSPECT INSIDE HANDLE ILLUMINATION LIGHT LH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH)
|

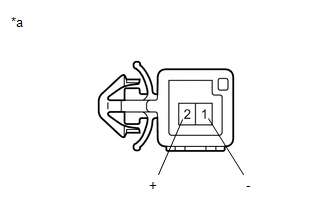

*a | Component without harness connected (Inside Handle Illumination Light LH (No. 1 Interior Illumination Light Assembly LH)) |
(a) Apply battery voltage to the connector and check that the inside handle illumination light LH comes on.
OK:
|
Measurement Condition | Condition |
Specified Condition |
|---|---|---|
|
Battery positive (+) > 2 (+) Battery negative (-) > 1 (-) |
Always | Inside handle illumination light LH comes on |
If the result is not as specified, replace the inside handle illumination light LH (No. 1 interior illumination light assembly LH).
2. INSPECT INSIDE HANDLE ILLUMINATION LIGHT RH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH)
|
*a | Component without harness connected (Inside Handle Illumination Light RH (No. 1 Interior Illumination Light Assembly RH)) |
(a) Apply battery voltage to the connector and check that the inside handle illumination light RH comes on.
OK:
|
Measurement Condition | Condition |
Specified Condition |
|---|---|---|
|
Battery positive (+) > 2 (+) Battery negative (-) > 1 (-) |
Always | Inside handle illumination light RH comes on |
If the result is not as specified, replace the inside handle illumination light RH (No. 1 interior illumination light assembly RH).
