INSTALLATION

PROCEDURE

1. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH (for 2WD)

(a) Temporarily install the rear upper control arm assembly LH to the rear suspension member sub-assembly with the bolt and nut.

NOTICE:

  • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
  • Insert the bolt with the threaded end facing the front of the vehicle.

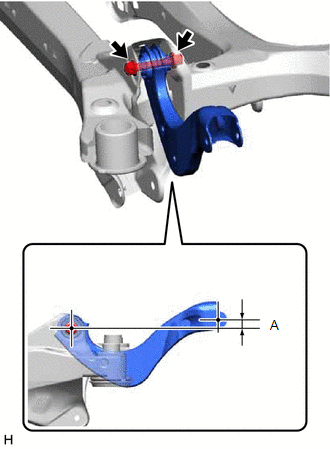

(b) Position the rear upper control arm assembly LH as shown in the illustration.

Reference Length (A):

1.2 mm (0.0472 in.)

(c) Fully tighten the bolt.

Torque:

73 N
