Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / Cruise Control / Millimeter Wave Radar Sensor / Components

COMPONENTS

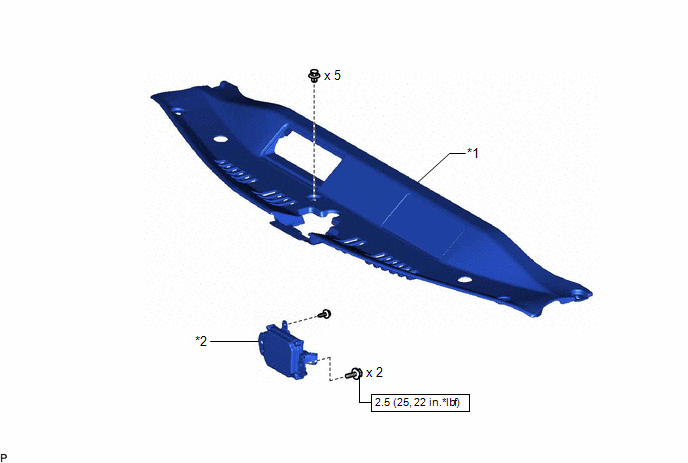

ILLUSTRATION

*1

COOL AIR INTAKE DUCT SEAL

*2

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
