PARTS LOCATION

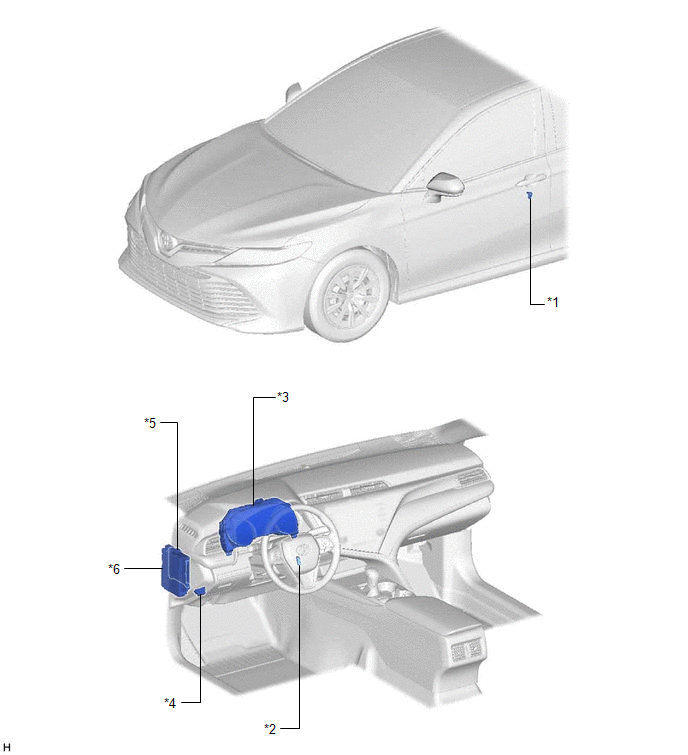

ILLUSTRATION
|
*1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
*2 | UNLOCK WARNING SWITCH ASSEMBLY |
|
*3 | COMBINATION METER ASSEMBLY |
*4 | DLC3 |
|
*5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE |
