Toyota Camry (XV70): Parts Location

PARTS LOCATION

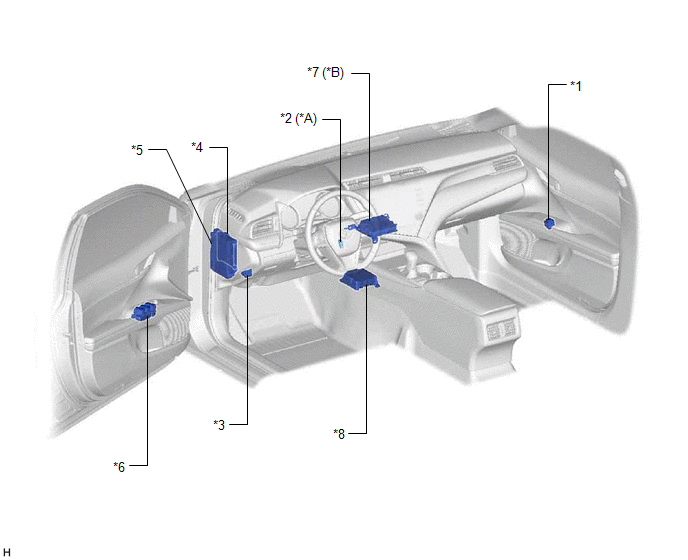

ILLUSTRATION

*A

w/o Smart Key System

*B

for Toyota Entune Remote Connect Compatible Type

*1

DOOR CONTROL SWITCH ASSEMBLY

*2

UNLOCK WARNING SWITCH ASSEMBLY

*3

DLC3

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 4 FUSE

- ECU-ACC FUSE

- ECU-DCC NO. 2 FUSE

- ALL DR LOCK RELAY

- L/D-DR UNLOCK RELAY

- D-DR UNLOCK RELAY

*6

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

- DOOR CONTROL SWITCH

*7

DCM (TELEMATICS TRANSCEIVER)

*8

AIRBAG SENSOR ASSEMBLY

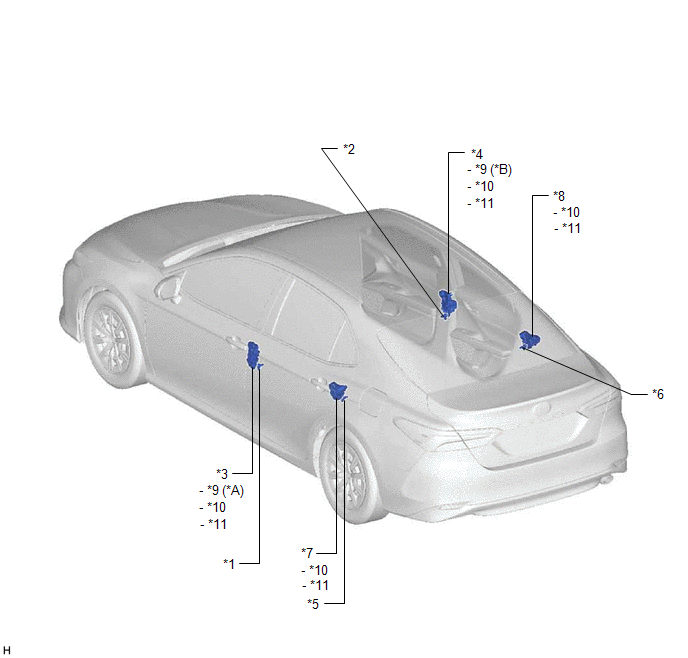

ILLUSTRATION

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)

*2

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)

*3

FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

*4

FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH

*5

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)

*6

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)

*7

REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

*8

REAR DOOR LOCK WITH MOTOR ASSEMBLY RH

*9

DOOR KEY LOCK AND UNLOCK SWITCH

*10

DOOR LOCK MOTOR

*11

DOOR UNLOCK DETECTION SWITCH

-

-
