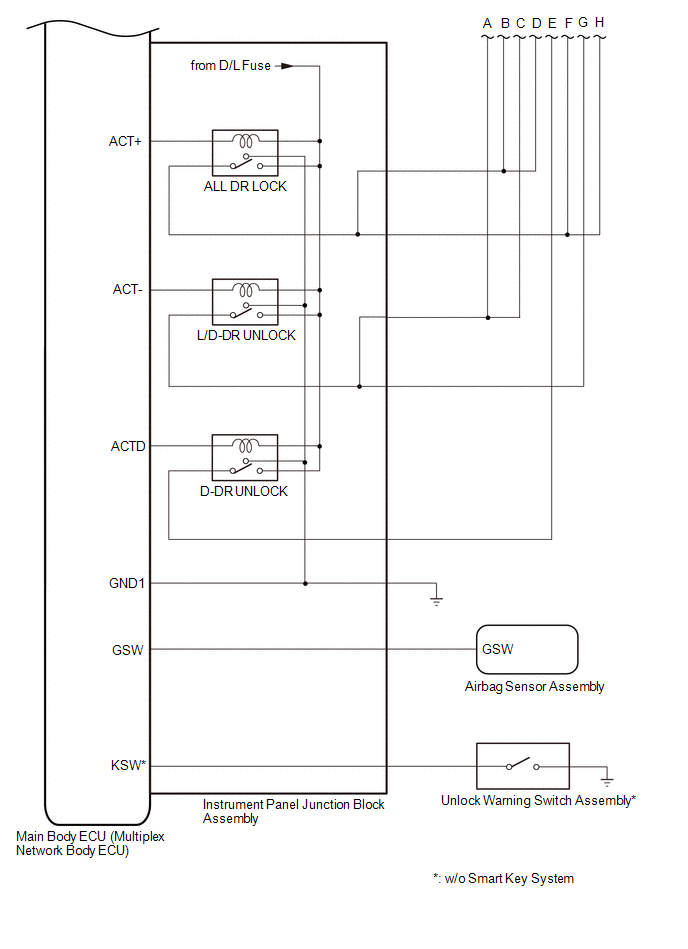

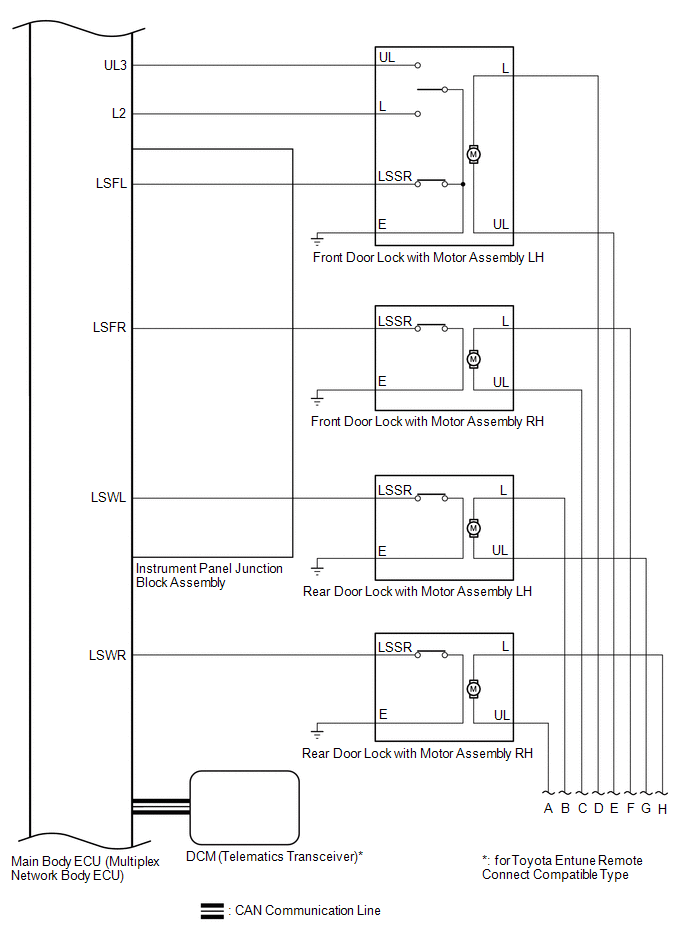

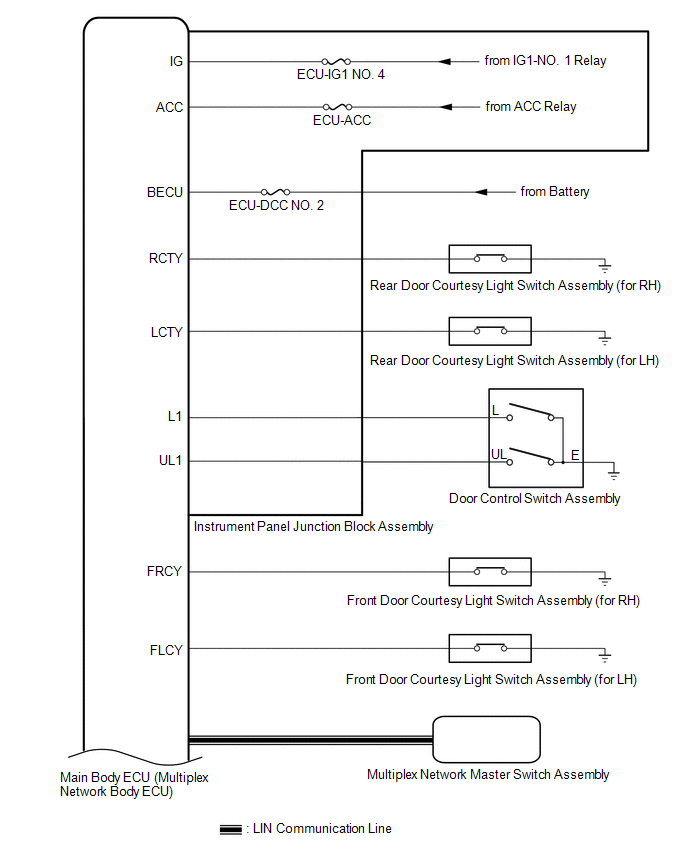

SYSTEM DIAGRAM
READ NEXT:
System Description
SYSTEM DESCRIPTION POWER DOOR LOCK CONTROL SYSTEM DESCRIPTION
(a) The power door lock control system locks/unlocks all doors. The main body ECU (multiplex network body ECU) receives lock/unlock reque
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT
HINT:
Use the following procedure to troubleshoot the power door lock control system.
*: Use the Techstream.
PROCEDURE
1. VEHICLE BROUGHT TO WORKSHOP
Check For Intermittent Problems
CHECK FOR INTERMITTENT PROBLEMS
NOTICE:
If the vehicle or vehicle controls are operated (for example, during initial inspection when the vehicle is brought in for repair) before operation history h
