Toyota Camry (XV70): Parts Location
PARTS LOCATION

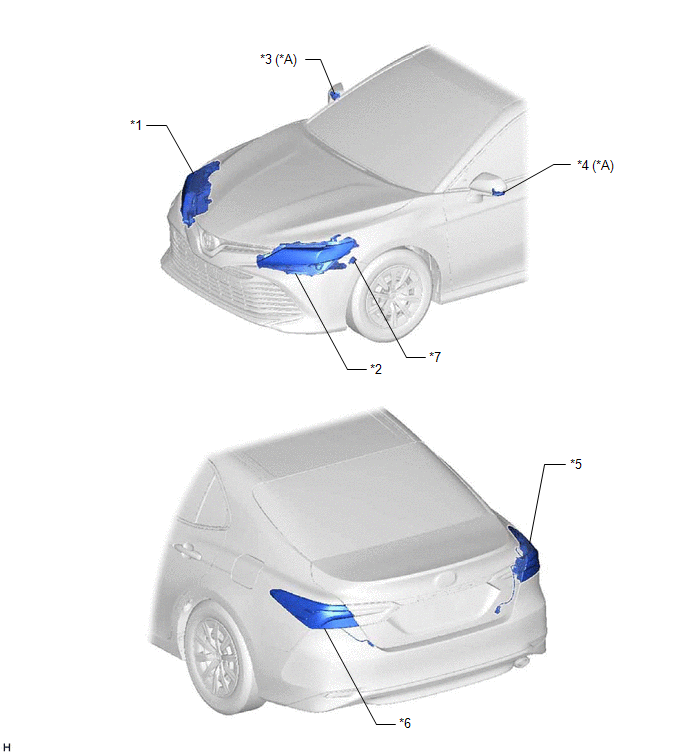

ILLUSTRATION
|
*A | w/ Side Turn Signal Light |
- | - |
|
*1 | HEADLIGHT ASSEMBLY RH - TURN SIGNAL LIGHT | *2 |
HEADLIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
|
*3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
*4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
|
*5 | REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT | *6 |
REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
|
*7 | WIRELESS DOOR LOCK BUZZER |
- | - |

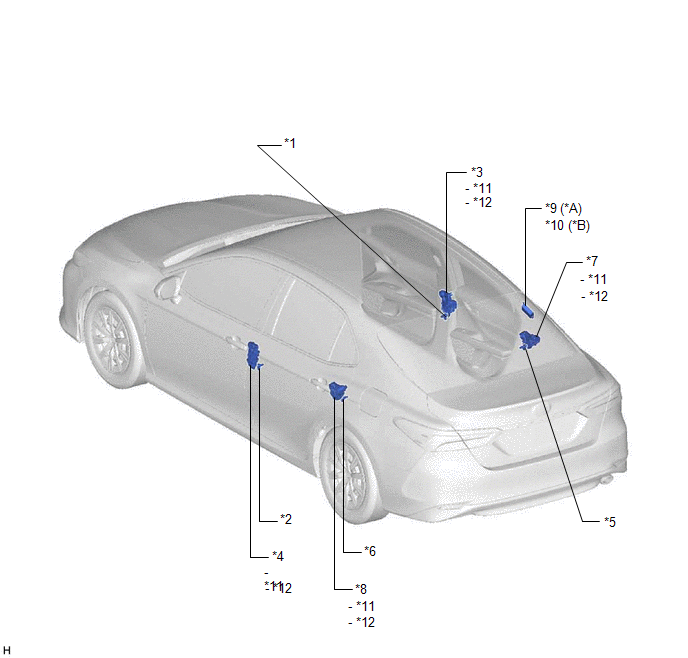

ILLUSTRATION
.png)
|
*1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
*2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
|
*3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
*4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
|
*5 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
*6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
|
*7 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
*8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
|
*9 | DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY |
*10 | DOOR LOCK MOTOR |
|
*11 | DOOR UNLOCK DETECTION SWITCH |
- | - |

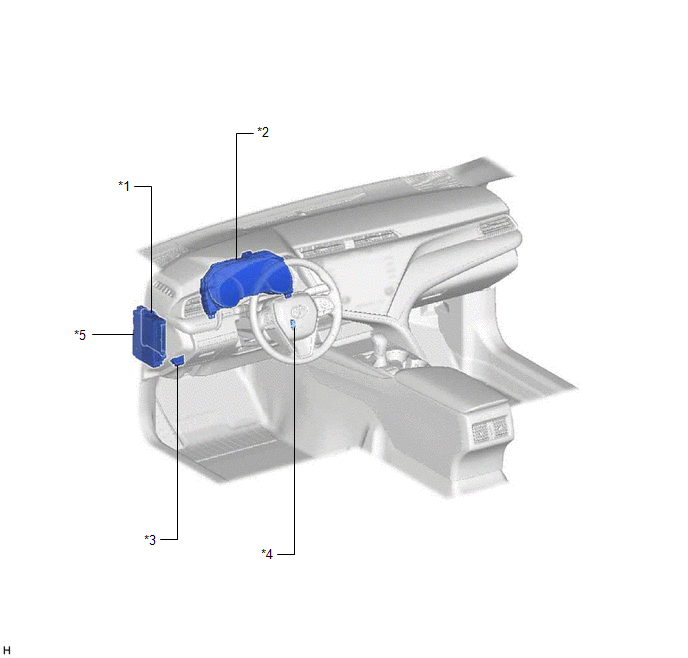

ILLUSTRATION
|
*1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*2 | COMBINATION METER ASSEMBLY |
|
*3 | DLC3 |
*4 | UNLOCK WARNING SWITCH ASSEMBLY |
|
*5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE |
- | - |
