REASSEMBLY

PROCEDURE

1. INSTALL GENERATOR DRIVE END FRAME BEARING

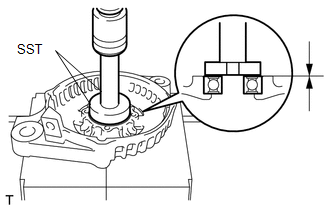

(a) Using SST and a press, install a new generator drive end frame bearing to the generator drive end frame.

SST: 09950-60010

09951-00470

SST: 09950-70010

09951-07100

(b) Fit the tabs of the retainer plate into the cutouts of the generator drive end frame to install the retainer plate.

*a

Tab

*b

Cutout

(c) Install the 4 screws.

Torque:

2.3 N
