Toyota Camry (XV70): Removal
REMOVAL
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE LH
Click here .gif)
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Click here
3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Click here
4. REMOVE INSTRUMENT SIDE PANEL LH
Click here
5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
6. REMOVE NO. 2 METER HOOD CLUSTER
Click here
7. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Click here
8. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
Click here
9. REMOVE FUEL LID OPENER SWITCH

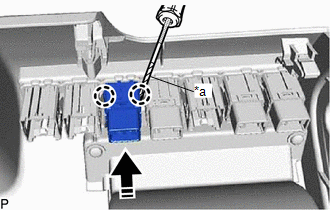

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the fuel lid opener switch as shown in the illustration.
|
*a | Protective Tape |
.png) |
Remove in this Direction |
READ NEXT:
Inspection
INSPECTION PROCEDURE 1. INSPECT FUEL LID OPENER SWITCH
(a) Check the switch. (1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Co
Installation
INSTALLATION PROCEDURE 1. INSTALL FUEL LID OPENER SWITCH
(a) Engage the 2 claws to install the fuel lid opener switch as shown in the illustration.
Install in this Direction
