Toyota Camry (XV70): Removal
REMOVAL
PROCEDURE
1. REMOVE ROOM LIGHT ASSEMBLY (for Bulb Type)

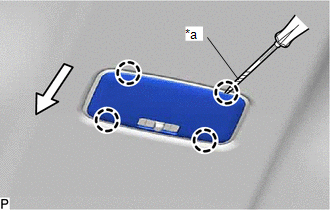

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the room light lens.
|
*a | Protective Tape |
.png) |
Front |

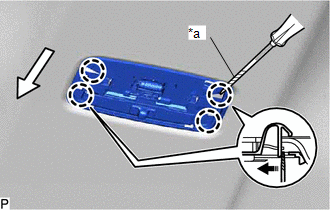

(b) Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws as shown in the illustration to separate the room light housing.
|
*a | Protective Tape |
|
|
Front |
.png) |
Remove in this Direction |

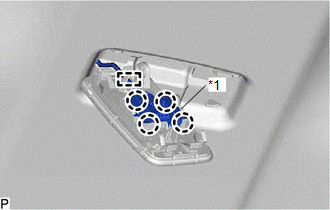

| (c) Disengage the clamp. |
|
(d) Disengage the 4 claws to disconnect the room light switch base from the room light housing.
2. REMOVE REAR ROOM LIGHT BULB (for Bulb Type)
(a) Remove the rear room light bulb from the room light switch base.
3. REMOVE SPOT LIGHT ASSEMBLY (for LED Type)

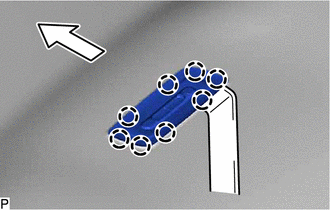

(a) Using a moulding remover, disengage the 8 claws.
|
|
Front |
(b) Disconnect the connector to remove the spot light assembly.
