Toyota Camry (XV70): System Diagram

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Door Lock / Wireless Door Lock Control System (w/ Smart Key System) / System Diagram

SYSTEM DIAGRAM

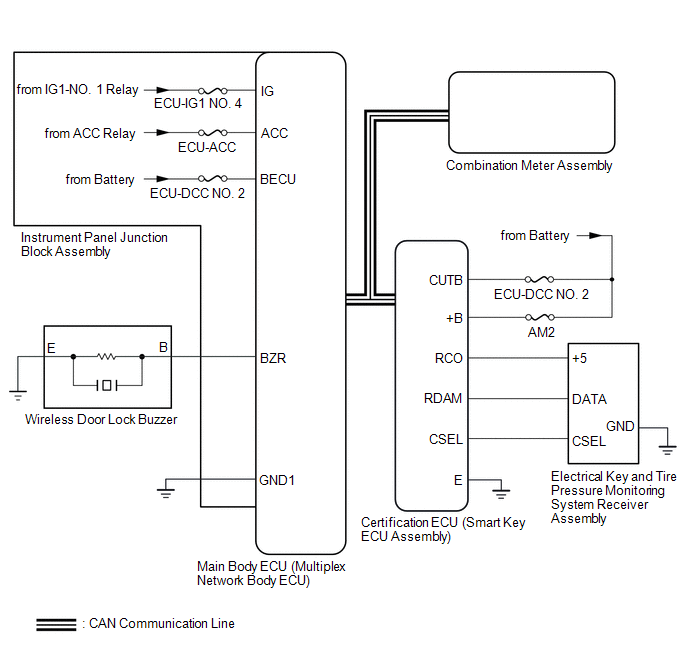

WIRELESS DOOR LOCK CONTROL SYSTEM

POWER DOOR LOCK CONTROL SYSTEM

Click here
