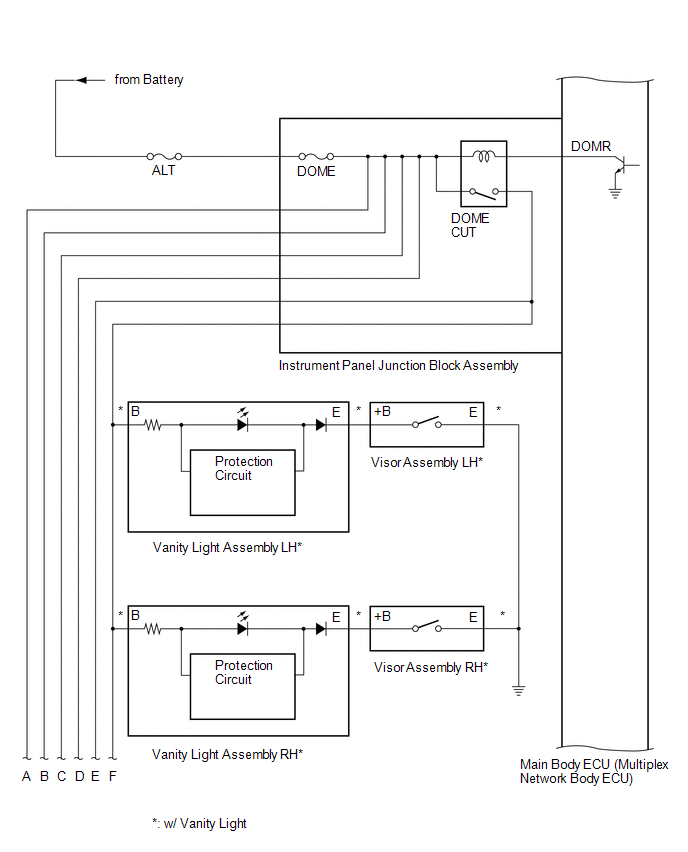

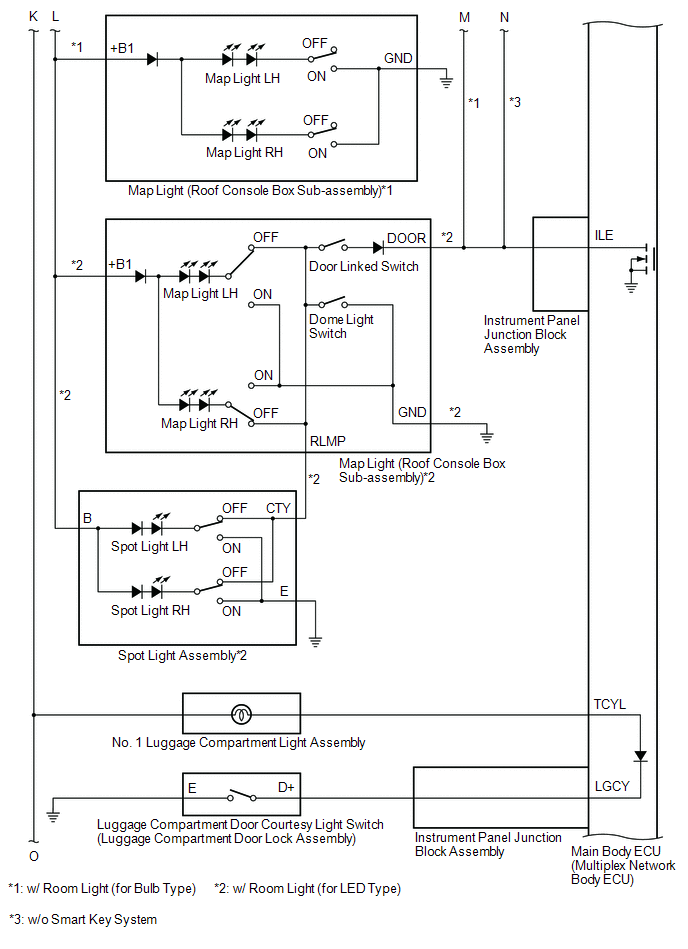

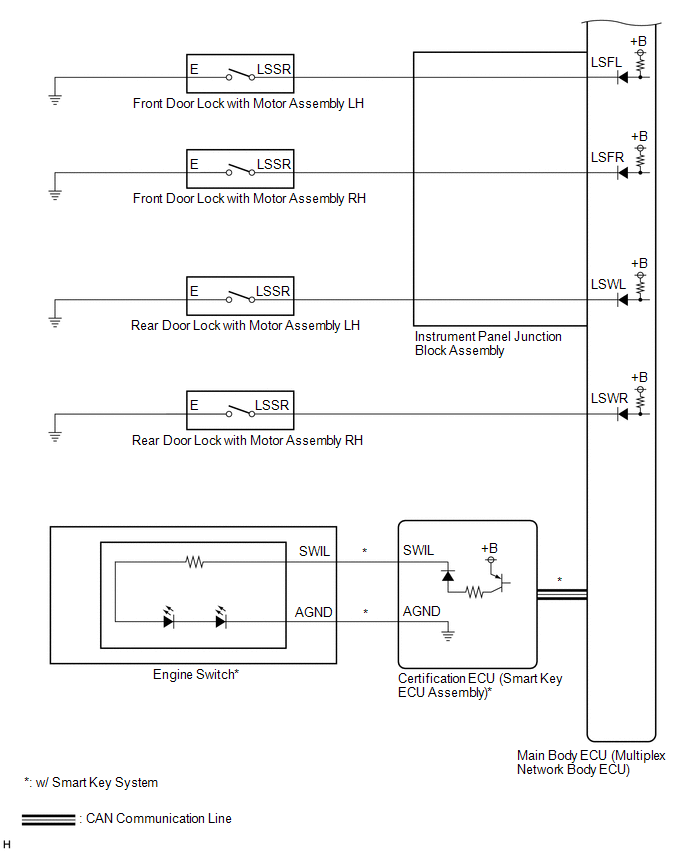

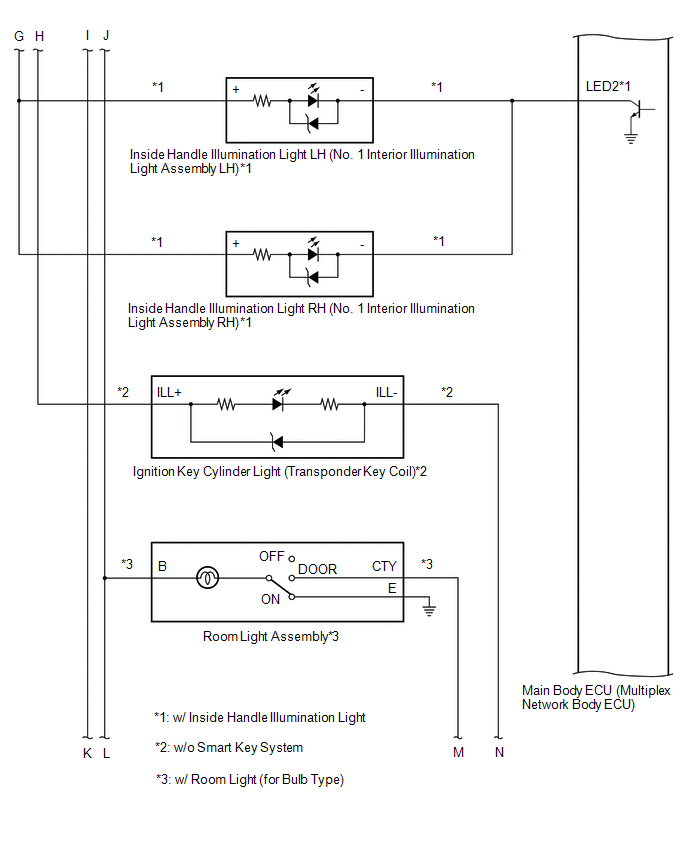

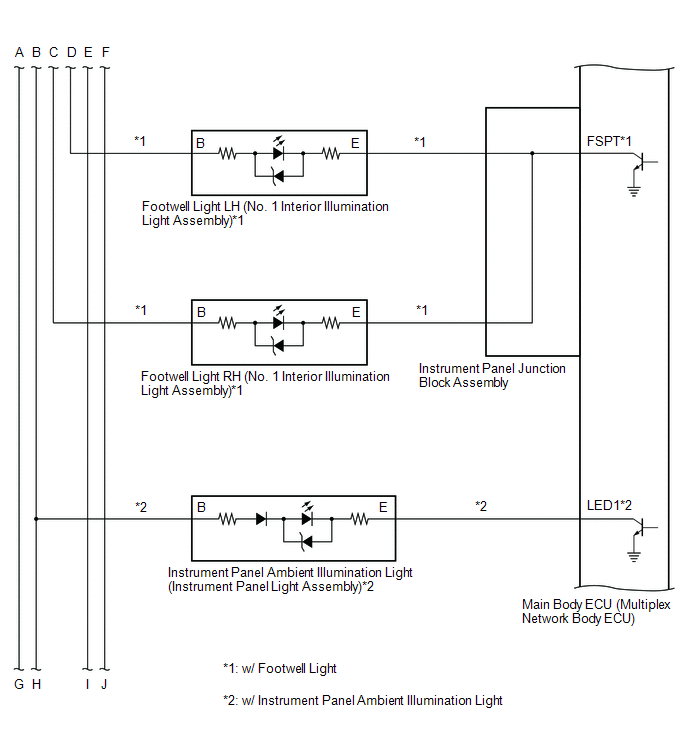

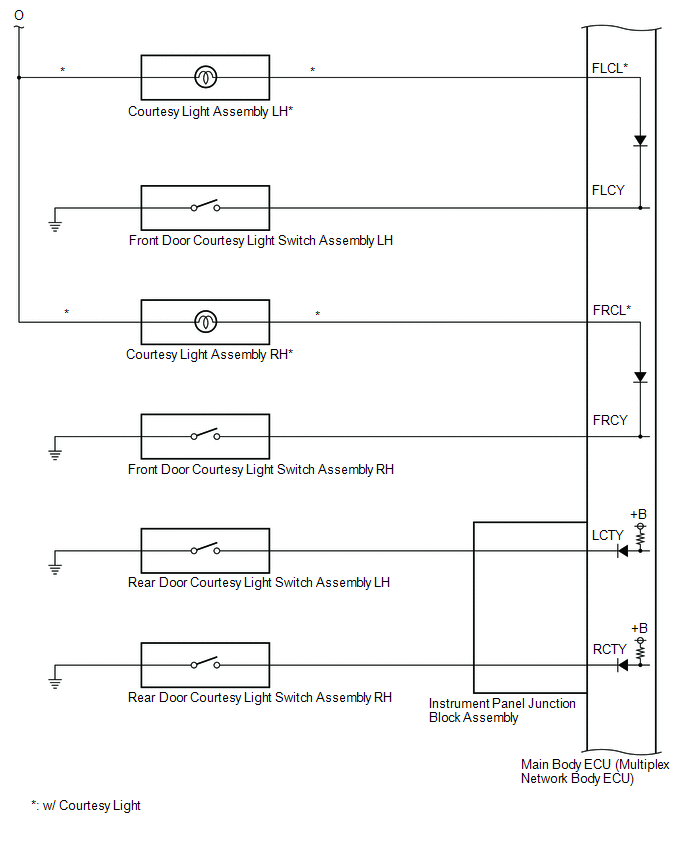

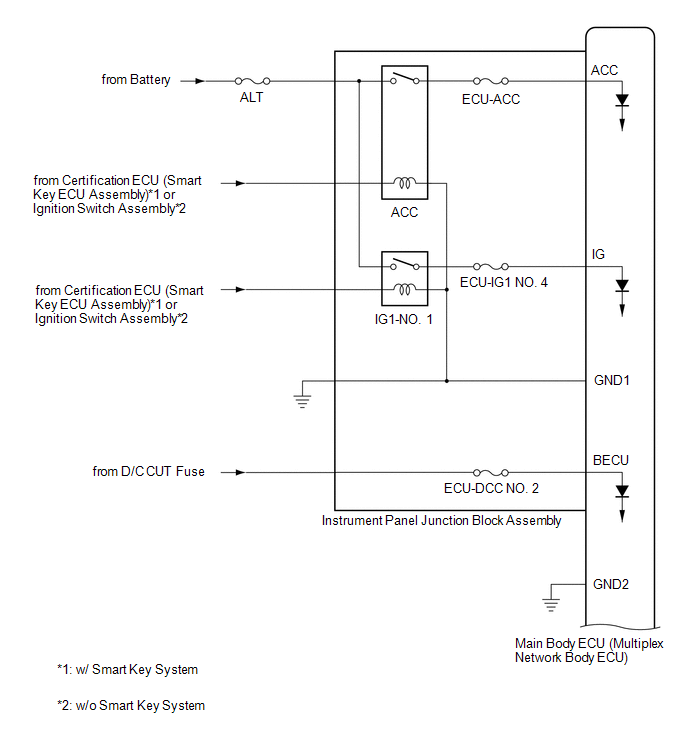

Toyota Camry (XV70): System Diagram

 Diagnostic Trouble Code Chart

DIAGNOSTIC TROUBLE CODE CHART Diagnostic Trouble Code Chart DTC No. Detection Item Trouble Area Link B1003 ECU Malfunction Central gateway ECU (network gateway ECU)

 Armrest (if equipped)

Fold down the armrest for use. NOTICE To prevent damage to the armrest, do not apply too much load on the armrest. Assist grips An assist grip installed on the ceiling can be used to support your body while sitting on the seat. WARNING Do not use the assist grip when getting in or out
