Toyota Camry (XV70): Wireless Door Lock Buzzer
Components
COMPONENTS

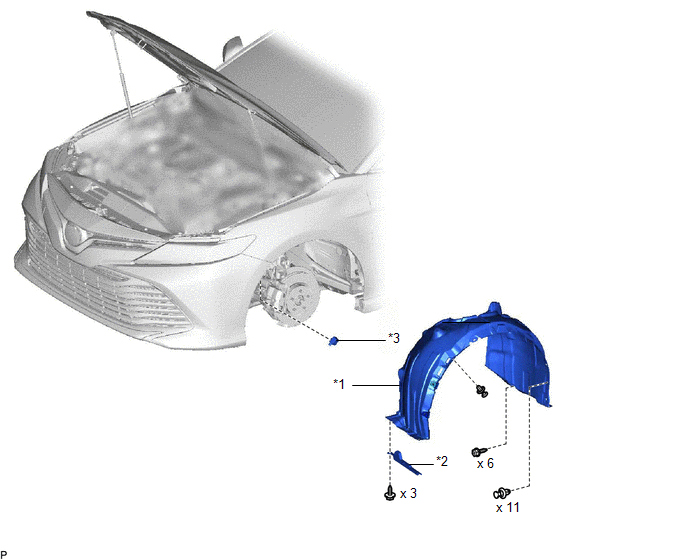

ILLUSTRATION
|
*1 | FRONT FENDER LINER LH |
*2 | FRONT WHEEL OPENING EXTENSION PAD LH |
|
*3 | WIRELESS DOOR LOCK BUZZER |
- | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE FRONT WHEEL LH
Click here
.gif)
2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
HINT:
Use the same procedure as for the RH side.
Click here
3. REMOVE FRONT FENDER LINER LH
HINT:
Use the same procedure as for the RH side.
Click here
4. REMOVE WIRELESS DOOR LOCK BUZZER

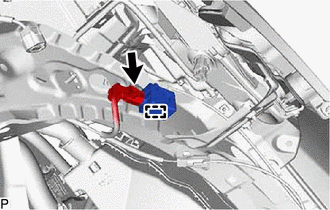

| (a) Disconnect the connector. |
|
(b) Disengage the clamp to remove the wireless door lock buzzer.
Installation
INSTALLATION
PROCEDURE
1. INSTALL WIRELESS DOOR LOCK BUZZER
(a) Engage the clamp to install the wireless door lock buzzer.
(b) Connect the connector.
2. INSTALL FRONT FENDER LINER LH
HINT:
Use the same procedure as for the RH side.
Click here
.gif)
3. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
HINT:
Use the same procedure as for the RH side.
Click here
4. INSTALL FRONT WHEEL LH
Click here
