Toyota Camry (XV70): Components
Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / 2gr-fks (fuel) / Fuel Tank / Components
COMPONENTS

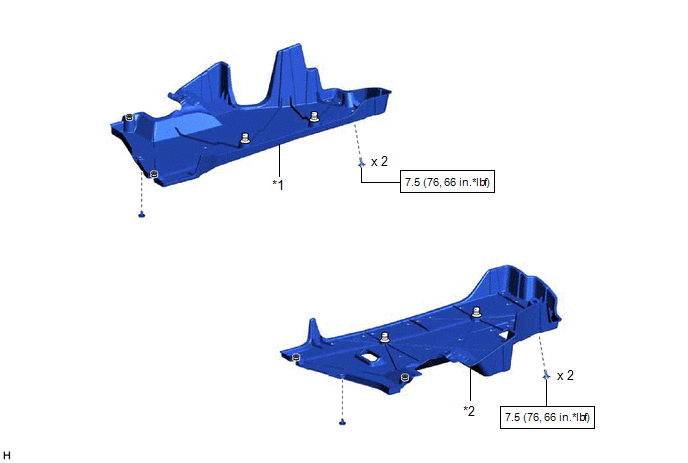

ILLUSTRATION
.png)
|
*1 | NO. 1 FLOOR UNDER COVER |
*2 | NO. 2 FLOOR UNDER COVER |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |

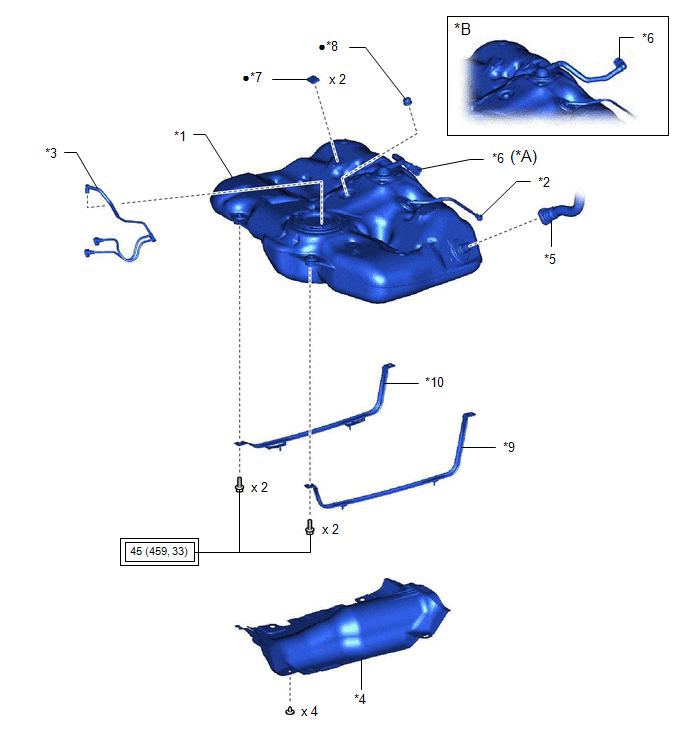

ILLUSTRATION
.png)
|
*A | w/ Fuel Outlet Valve Assembly |
*B | w/o Fuel Outlet Valve Assembly |
|
*1 | FUEL TANK ASSEMBLY |
*2 | FUEL TANK BREATHER TUBE SUB-ASSEMBLY |
|
*3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
*4 | NO. 1 FUEL TANK PROTECTOR |
|
*5 | FUEL TANK TO FILLER PIPE HOSE |
*6 | FUEL CUT OFF VALVE WITH TUBE ASSEMBLY |
|
*7 | NO. 1 FUEL TANK CUSHION |
*8 | NO. 6 FUEL TANK CUSHION |
|
*9 | NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH |
*10 | NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
● | Non-reusable part |
