Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / 2gr-fks (fuel) / Fuel Tank / Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 1 FUEL TANK CUSHION

(a) Install 2 new No. 1 fuel tank cushions to the fuel tank assembly.

2. INSTALL NO. 6 FUEL TANK CUSHION

(a) Install a new No. 6 fuel tank cushion to the fuel tank assembly.

3. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY

(a) Engage the clamp to install the fuel tank main tube sub-assembly to the fuel tank assembly.

4. INSTALL FUEL TANK ASSEMBLY

CAUTION:

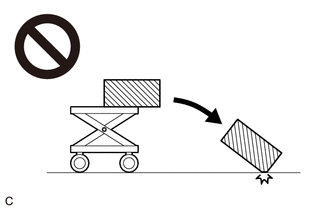

The fuel tank assembly is very heavy. Be sure to follow the procedure described in the repair manual, or the fuel tank assembly may fall off the engine lifter.

(a) Set the fuel tank assembly on an engine lifter.

NOTICE:

Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.

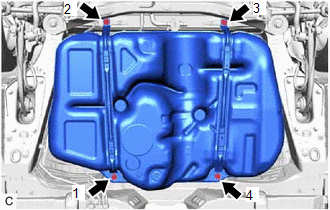

(b) Using the engine lifter, slowly raise the fuel tank assembly, and then install the fuel tank assembly, No. 1 fuel tank band sub-assembly LH and No. 1 fuel tank band sub-assembly RH with the 4 bolts in the order shown in the illustration.

Torque:

45 N·m {459 kgf·cm, 33 ft·lbf}

NOTICE:

  • Be careful not to drop the fuel tank assembly.
  • When installing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.

(c) w/ Fuel Outlet Valve Assembly:

(1) Connect the fuel cut off valve with tube assembly to the fuel outlet valve assembly.

Click here

(d) w/o Fuel Outlet Valve Assembly:

(1) Connect the fuel cut off valve with tube assembly to the canister (charcoal canister assembly).

Click here

5. CONNECT FUEL TANK TO FILLER PIPE HOSE

(a) Connect the fuel tank to filler pipe hose to the fuel tank assembly.

Click here

6. CONNECT FUEL TANK BREATHER TUBE SUB-ASSEMBLY

(a) Connect the fuel tank breather tube sub-assembly to the fuel pipe.

Click here

7. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

(a) Connect the fuel tank main tube sub-assembly to the fuel pipe.

Click here

8. INSTALL NO. 1 FUEL TANK PROTECTOR

(a) Install the No. 1 fuel tank protector to the fuel tank assembly with the 4 clips.

9. INSTALL NO. 1 FLOOR UNDER COVER

Click here

10. INSTALL NO. 2 FLOOR UNDER COVER

Click here

11. INSTALL CENTER EXHAUST PIPE ASSEMBLY

Click here

12. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click here

13. ADD FUEL
