Toyota Camry (XV70): Components
COMPONENTS
ILLUSTRATION

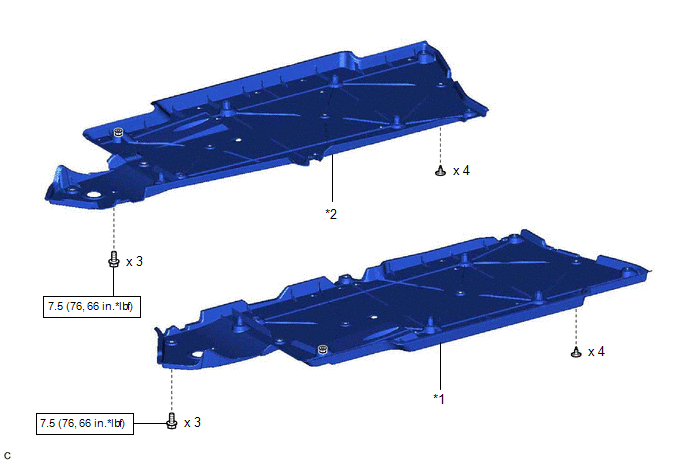

.png)
|
*1 | FRONT FLOOR COVER LH |
*2 | FRONT FLOOR COVER RH |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
ILLUSTRATION

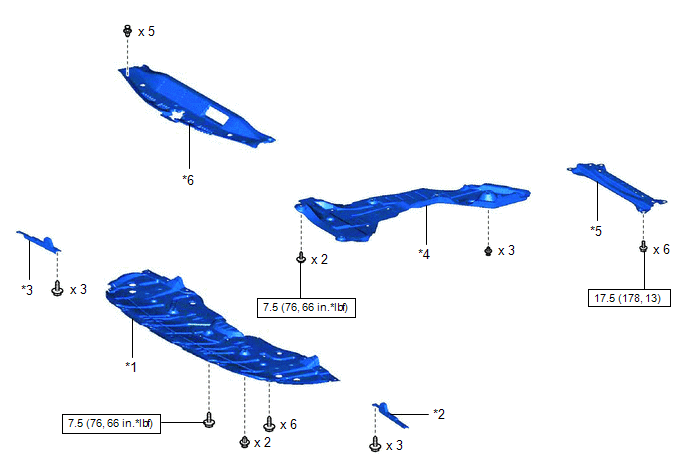

.png)
|
*1 | NO. 1 ENGINE UNDER COVER |
*2 | FRONT WHEEL OPENING EXTENSION PAD LH |
|
*3 | FRONT WHEEL OPENING EXTENSION PAD RH |
*4 | REAR ENGINE UNDER COVER RH |
|
*5 | BODY MOUNTING PLATE |
*6 | COOL AIR INTAKE DUCT SEAL |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
ILLUSTRATION
.png)
|
*1 | FRONT EXHAUST PIPE ASSEMBLY |
*2 | NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
|
*3 | GASKET |
- | - |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |
ILLUSTRATION
.png)
|
*1 | EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst) |
*2 | EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst) |
|
*3 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
*4 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
|
*5 | EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1) |
*6 | EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2) |
|
*7 | AIR FUEL RATIO SENSOR (for Bank 1) |
*8 | AIR FUEL RATIO SENSOR (for Bank 2) |
|
*9 | NO. 2 MANIFOLD STAY |
*10 | V-BANK COVER SUB-ASSEMBLY |
|
*11 | STUD BOLT |
*12 | ENGINE OIL LEVEL DIPSTICK |
|
*13 | ENGINE OIL LEVEL DIPSTICK GUIDE |
*14 | ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* | For use with SST |
|
● | Non-reusable part |
- | - |
