Toyota Camry (XV70): Components
COMPONENTS
ILLUSTRATION
.png)
|

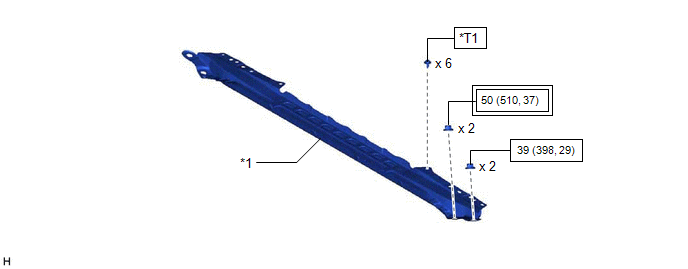

*1 | FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY |
- | - |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
|
*T1 | Bolt color black: 8.0 N*m (82 kgf*cm, 71 in.*lbf) Bolt color silver: 8.9 N*m (91 kgf*cm, 79 in.*lbf) |
- | - |
ILLUSTRATION
.png)
|

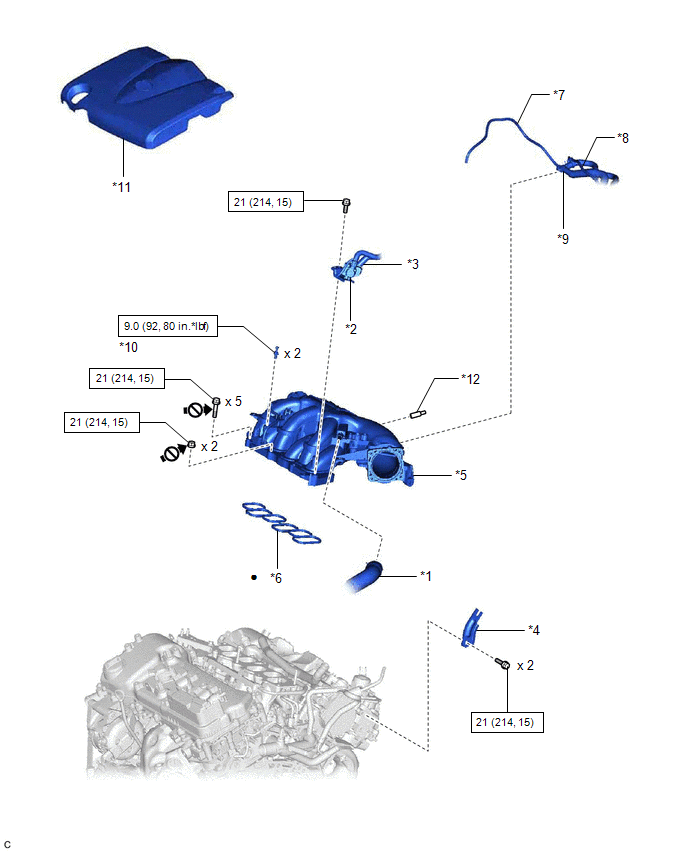

*1 | VENTILATION HOSE |
*2 | PURGE VALVE (PURGE VSV) |
|
*3 | NO. 1 FUEL VAPOR FEED HOSE |
*4 | NO. 2 SURGE TANK STAY |
|
*5 | INTAKE AIR SURGE TANK ASSEMBLY |
*6 | AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
|
*7 | VACUUM HOSE SUB-ASSEMBLY |
*8 | VACUUM HOSE |
|
*9 | NO. 2 AIR TUBE |
*10 | NO. 1 V-BANK COVER BRACKET |
|
*11 | V-BANK COVER SUB-ASSEMBLY |
*12 | PLUG |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |
.png) |
Do not apply lubricants (to the threaded parts) |
- | - |
ILLUSTRATION
.png)
|

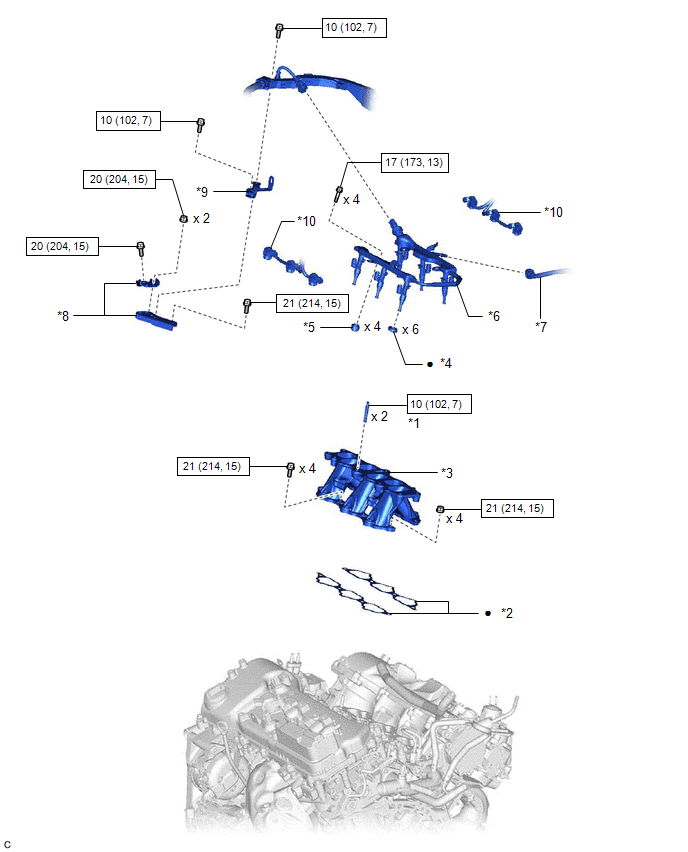

*1 | STUD BOLT |
*2 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
|
*3 | INTAKE MANIFOLD |
*4 | INJECTOR VIBRATION INSULATOR |
|
*5 | NO. 1 DELIVERY PIPE SPACER |
*6 | FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY |
|
*7 | FUEL TUBE SUB-ASSEMBLY |
*8 | NO. 2 ENGINE MOUNTING STAY RH |
|
*9 | WIRE HARNESS CLAMP BRACKET |
*10 | NO. 5 ENGINE WIRE |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |
