COMPONENTS
ILLUSTRATION
.png)
|
*1 | STEERING WHEEL ASSEMBLY |
- | - |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
- | - |

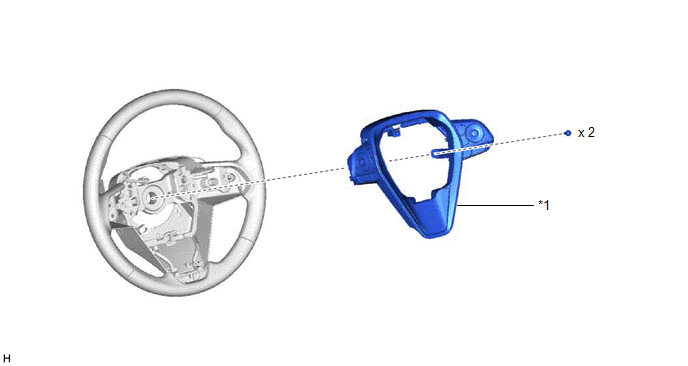

ILLUSTRATION
.png)
|
*1 | STEERING PAD SWITCH ASSEMBLY |
- | - |

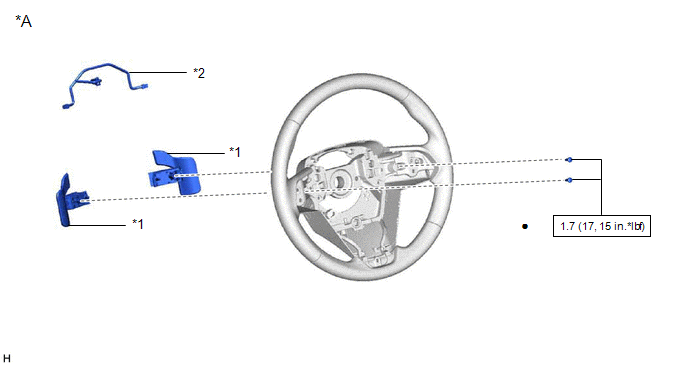

ILLUSTRATION
|
*A | w/ Shift Paddle Switch |
- | - |
|
*1 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
*2 | NO. 1 SWITCH WIRE |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |
|
★ | Precoated part |
- | - |
