Toyota Camry (XV70): Installation
INSTALLATION
CAUTION / NOTICE / HINT
NOTICE:
- Do not remove/install the spiral cable with sensor sub-assembly with the battery connected and the ignition switch ON.
- Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the ignition switch ON.
- Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
PROCEDURE
1. INSTALL NO. 1 SWITCH WIRE (w/ Shift Paddle Switch)
for UB80E: Click here .gif)
for UB80F: Click here
for UA80E: Click here
2. INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Shift Paddle Switch)
for UB80E: Click here
for UB80F: Click here
for UA80E: Click here
3. INSTALL STEERING PAD SWITCH ASSEMBLY
Click here
4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
5. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Click here
6. INSTALL STEERING WHEEL ASSEMBLY

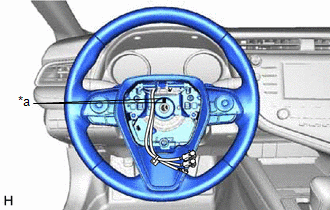

| (a) Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly. |
|
.png)
(b) Using a 10 mm hexagon socket wrench, install the steering wheel assembly set bolt.
Torque:
62 N
