Toyota Camry (XV70): Components
COMPONENTS

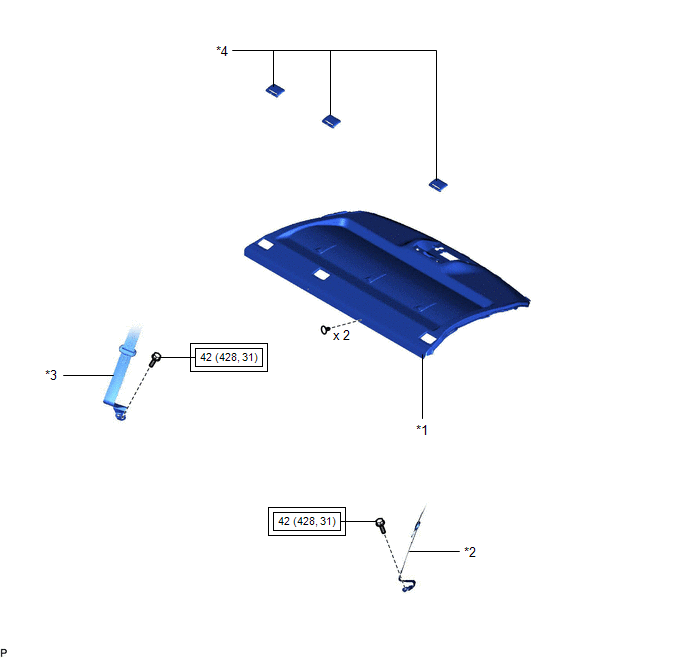

ILLUSTRATION
|
*1 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
*2 | REAR SEAT OUTER BELT ASSEMBLY LH |
|
*3 | REAR SEAT OUTER BELT ASSEMBLY RH |
*4 | REAR SEAT SHOULDER BELT HOLE COVER |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- | - |

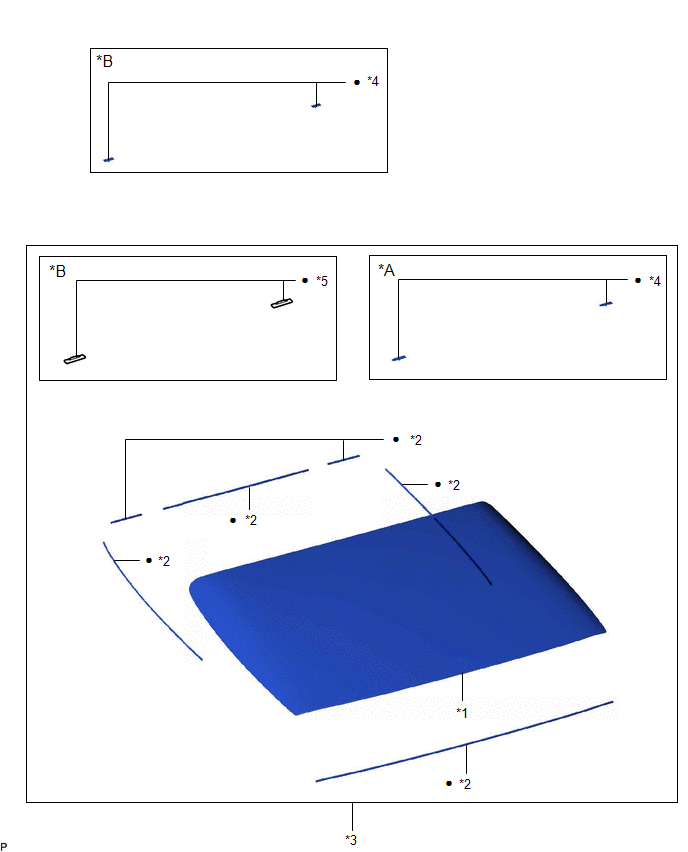

ILLUSTRATION
|
*A | for 1-piece Type |
*B | for 2-piece Type |
|
*1 | BACK WINDOW GLASS |
*2 | BACK WINDOW GLASS ADHESIVE DAM |
|
*3 | BACK WINDOW GLASS SUB-ASSEMBLY |
*4 | NO. 1 BACK WINDOW GLASS STOPPER |
|
*5 | NO. 2 BACK WINDOW GLASS STOPPER |
- | - |
|
● | Non-reusable part |
- | - |
