COMPONENTS

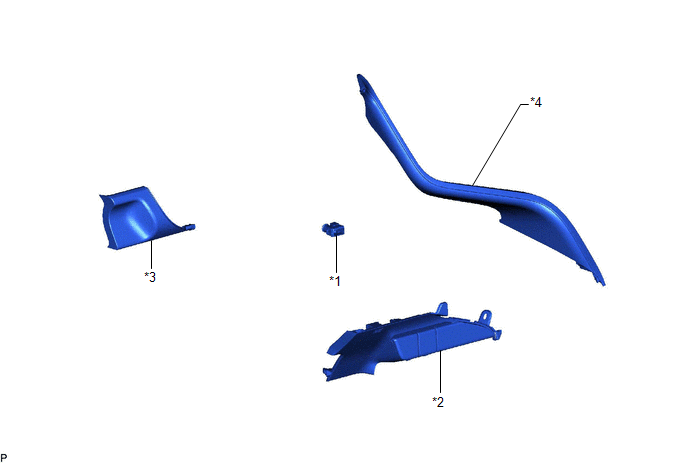

ILLUSTRATION
|
*1 | COOLER (ROOM TEMP. SENSOR) THERMISTOR |
*2 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
|
*3 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY |
*4 | NO. 1 METER HOOD CLUSTER |
