Toyota Camry (XV70): Installation
INSTALLATION
PROCEDURE
1. INSTALL COOLER (ROOM TEMP. SENSOR) THERMISTOR
(a) Connect the connector and aspirator.

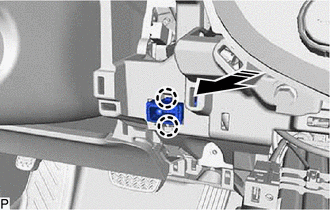

(b) Engage the 2 claws to install the cooler (room temp. sensor) thermistor as shown in the illustration.
.png) |
Install in this Direction |
2. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Click here .gif)
3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here
4. INSTALL NO. 1 METER HOOD CLUSTER
Click here
