Toyota Camry (XV70): Components
COMPONENTS

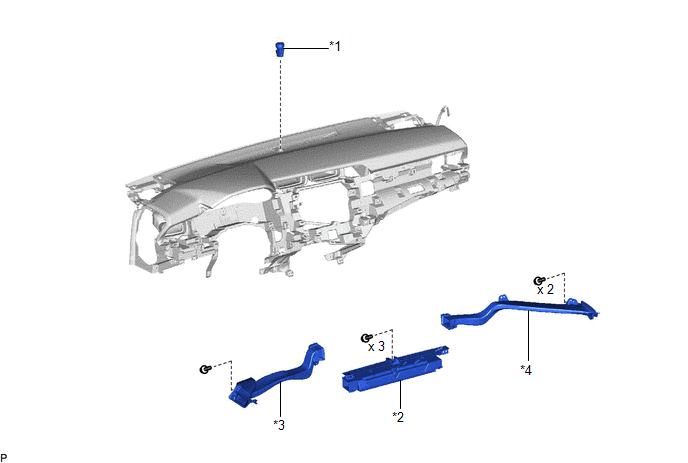

ILLUSTRATION
|
*1 | AUTOMATIC LIGHT CONTROL SENSOR |
*2 | DEFROSTER NOZZLE ASSEMBLY |
|
*3 | NO. 1 SIDE DEFROSTER NOZZLE DUCT |
*4 | NO. 2 SIDE DEFROSTER NOZZLE DUCT |
READ NEXT:
Removal
REMOVAL CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during au
Inspection
INSPECTION PROCEDURE 1. INSPECT AUTOMATIC LIGHT CONTROL SENSOR
(a) Disconnect the M1 automatic light control sensor connector.
*a Front view of wire harness connector
Installation
INSTALLATION PROCEDURE 1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
(a) Engage the 2 claws to install the automatic light control sensor. (b) Connect the connector.
2. INSTALL DEFROSTER NOZZLE ASSEMBLY
