Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Luggage Compartment Door Outside Garnish / Disassembly

DISASSEMBLY

PROCEDURE

1. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

Click here

2. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR

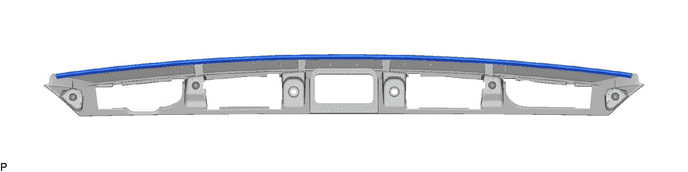

(a) Remove the luggage compartment door outside garnish protector from the luggage compartment door outside garnish.
