Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Luggage Compartment Door Outside Garnish / Installation

INSTALLATION

PROCEDURE

1. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

(a) Install 4 new clips to the luggage compartment door outside garnish sub-assembly.

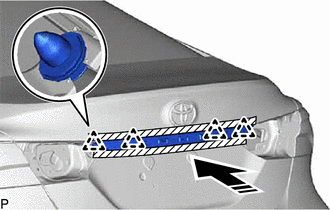

(b) Engage the 4 clips as shown in the illustration.

Install in this Direction

(c) Install the luggage compartment door outside garnish sub-assembly with the 2 screws.

2. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

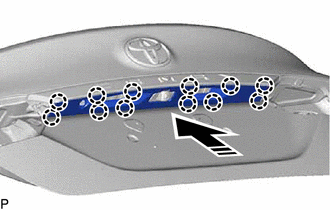

(a) Engage the 12 claws to install the No. 3 luggage compartment door outside garnish as shown in the illustration.

Install in this Direction

3. INSTALL REAR LIGHT ASSEMBLY LH

Click here

4. INSTALL REAR LIGHT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.
