Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Name Plate / Components

COMPONENTS

ILLUSTRATION

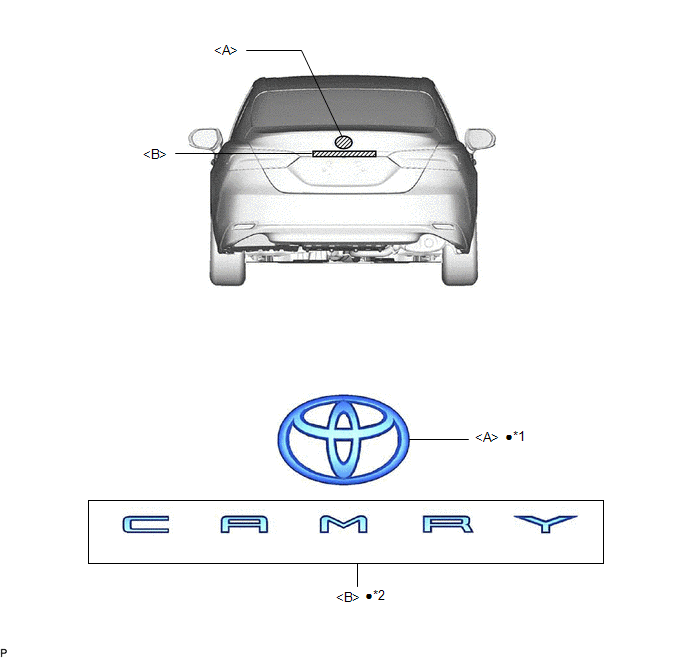

*1

LUGGAGE COMPARTMENT DOOR EMBLEM

*2

NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

●

Non-reusable part

-

-

ILLUSTRATION

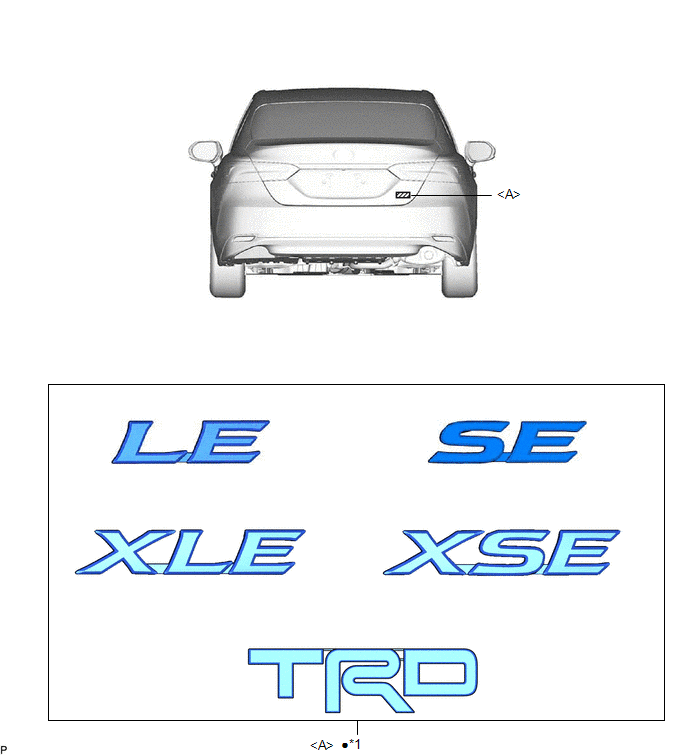

*1

NO. 3 LUGGAGE COMPARTMENT DOOR PLATE

-

-

●

Non-reusable part

-

-

ILLUSTRATION

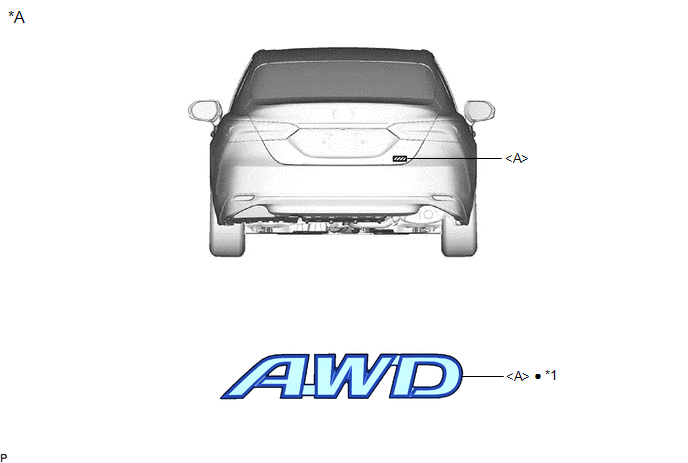

*A

for AWD

-

-

*1

NO. 4 LUGGAGE COMPARTMENT DOOR PLATE

-

-

●

Non-reusable part

-

-
