Toyota Camry (XV70): Hydraulic Test
HYDRAULIC TEST
PERFORM HYDRAULIC TEST
CAUTION:
- Do not perform a stall test if there are any people or objects near the vehicle.
.png)
- The vehicle could begin moving suddenly, resulting in a serious accident.
- Do not perform a stall test if any wheel chocks are out of position.
.png)
- The vehicle could begin moving suddenly, resulting in a serious accident.

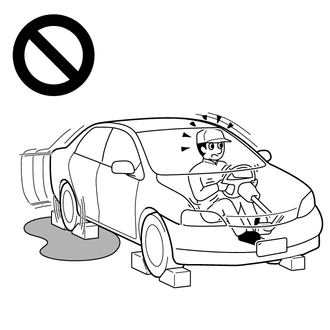

- Do not perform the stall test on a slippery or low-friction surface that could allow the tires to spin.
.png)
- The vehicle could begin moving suddenly, resulting in a serious accident.
(a) Measure the line pressure.
NOTICE:
- Perform this test with the ATF (Automatic Transaxle Fluid) at the normal operating temperature: 50 to 80
