Toyota Camry (XV70): Inspection
INSPECTION
PROCEDURE
1. INSPECT STEERING COLUMN ASSEMBLY

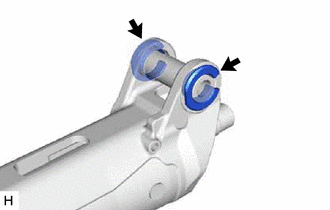

| (a) Check that the 2 bushings are securely installed to the steering column assembly. If the bushings are deformed, missing or damaged, replace the steering column assembly with a new one. |
|
