INSPECTION

PROCEDURE

1. INSPECT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

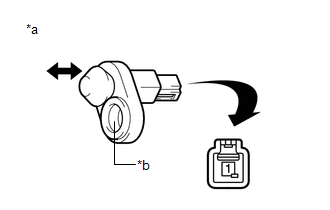

Component without harness connected

(Rear Door Courtesy Light Switch Assembly)

Switch Body

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - Switch body	Not pushed (ON)	Below 1 ?
1 - Switch body	Pushed (OFF)	10 k? or higher

If the result is not as specified, replace the rear door courtesy light switch assembly.
