Toyota Camry (XV70): Installation

Toyota Camry Repair Manual XV70 (2018-2024) / Power Source, Network / Power Distribution / Main Body Ecu / Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

  • Before replacing the main body ECU (multiplex network body ECU), refer to Registration.

    w/ Smart Key System: Click here

    w/o Smart Key System: Click here

  • After the main body ECU (multiplex network body ECU) has been replaced, the automatic light control system will not operate until the engine is started.

PROCEDURE

1. INSTALL MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

NOTICE:

  • Make sure that the connecting surfaces are free of foreign matter.
  • Do not touch the main body ECU (multiplex network body ECU) connector.

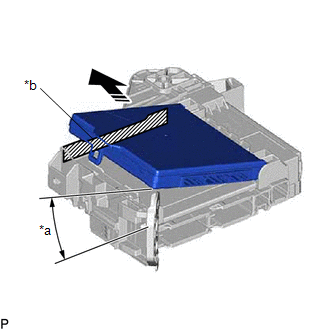

(a) Set the main body ECU (multiplex network body ECU) to the position where the guide of the main body ECU (multiplex network body ECU) contacts the housing sidewall of the instrument panel junction block assembly as shown in the illustration.

*a

20
