INSTALLATION

PROCEDURE

1. INSTALL SLIDING ROOF HOUSING ASSEMBLY

(a) Loosen the 4 bolts of the brackets of the sliding roof housing assembly.

(b) Temporarily install the sliding roof housing assembly with the 6 nuts and 8 bolts.

(c) Tighten the 2 nuts.

HINT:

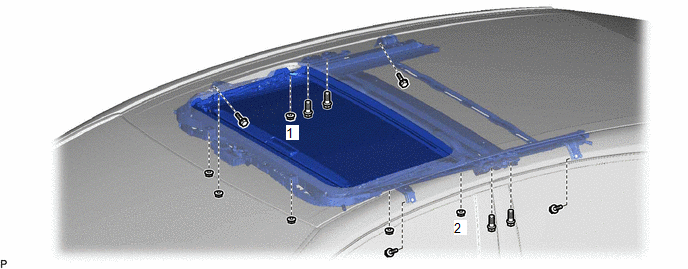

Tighten the 2 nuts in the order shown in the illustration.

Torque:

8.0 N
