INSTALLATION

PROCEDURE

1. INSTALL DOOR CONTROL AND TIRE PRESSURE WARNING ECU AND RECEIVER (w/o Smart Key System)

NOTICE:

• Do not drop, strike or otherwise subject the door control and tire pressure warning ECU and receiver to impact.
• If the door control and tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

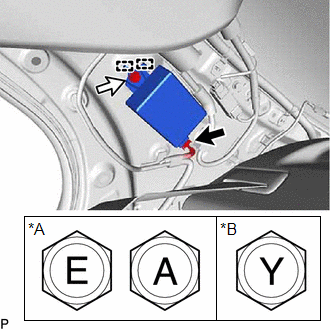

(a) Connect the connector.

*A for Type A *B for Type B

(b) Engage the 2 guides and install the door control and tire pressure warning ECU and receiver with the bolt.

Torque:

for Type A :

8.3 N·m {85 kgf·cm, 73 in·lbf}

for Type B :

10 N·m {102 kgf·cm, 7 ft·lbf}

NOTICE:

There are three types of bolts and the tightening torque depends on the type of bolt used as shown in the illustration. Therefore, confirm the tightening torque before installing the bolt.

2. INSTALL ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER (w/ Smart Key System)

NOTICE:

• Do not drop, strike or otherwise subject the electrical key and tire pressure warning ECU and receiver to impact.
• If the electrical key and tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

(a) Connect the connector.

*A for Type A *B for Type B

(b) Engage the 2 guides and install the electrical key and tire pressure warning ECU and receiver with the bolt.

Torque:

for Type A :

8.3 N·m {85 kgf·cm, 73 in·lbf}

for Type B :

10 N·m {102 kgf·cm, 7 ft·lbf}

NOTICE:

There are three types of bolts and the tightening torque depends on the type of bolt used as shown in the illustration. Therefore, confirm the tightening torque before installing the bolt.

3. INSTALL INNER ROOF SIDE GARNISH RH

HINT:

Use the same procedure as for the LH side.

Click here

4. INSTALL REAR SIDE SEATBACK ASSEMBLY RH (for Fold Down Seat Type)

HINT:

Use the same procedure as for the LH side.

Click here

5. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

Click here

6. INSTALL REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)

Click here

7. INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

Click here

8. INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click here

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

for A25A-FKS:

Click here

for 2GR-FKS:

Click here

10. REGISTER TRANSMITTER ID

Click here

11. INSPECT TIRE PRESSURE WARNING SYSTEM

Click here

12. PERFORM INITIALIZATION

Click here

13. PERFORM DIAGNOSTIC SYSTEM CHECK

Click here

14. INSPECT SRS WARNING LIGHT

Click here
