Toyota Camry (XV70): Door Control Switch

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Door Lock / Door Control Switch

Components

COMPONENTS

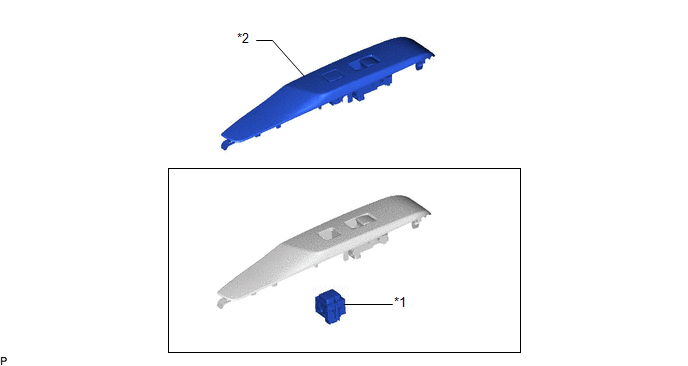

ILLUSTRATION

*1

DOOR CONTROL SWITCH ASSEMBLY

*2

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Removal

REMOVAL

PROCEDURE

1. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click here

2. REMOVE DOOR CONTROL SWITCH ASSEMBLY

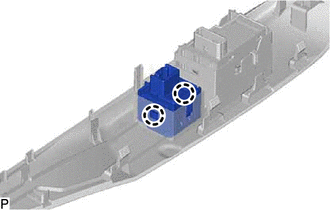

(a) Using a screwdriver, disengage the 2 claws and remove the door control switch assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT DOOR CONTROL SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

4 - 5

Lock switch pushed

Below 200 ?

4 - 5

Lock switch not pushed

1 M? or higher

2 - 5

Unlock switch not pushed

1 M? or higher

2 - 5

Unlock switch pushed

Below 200 ?

If the result is not as specified, replace the door control switch assembly.

*a

Component without harness connected

(Door Control Switch Assembly)

Installation

INSTALLATION

PROCEDURE

1. INSTALL DOOR CONTROL SWITCH ASSEMBLY

(a) Engage the 2 claws to install the door control switch assembly.

2. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click here
