Toyota Camry (XV70): Installation
INSTALLATION
PROCEDURE
1. INSTALL AIR CONDITIONER PRESSURE SENSOR
(a) Remove the vinyl tape from the air conditioner tube and accessory assembly.
(b) Sufficiently apply compressor oil to a new air conditioner pressure sensor and the fitting surface of the air conditioner pressure sensor.
Compressor Oil:
ND-OIL 12 or equivalent

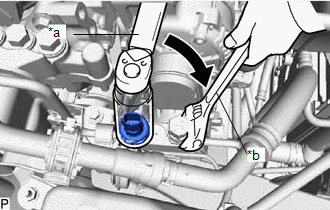

| (c) Using a 27 mm deep socket wrench, install the air conditioner pressure sensor as shown in the illustration. Torque: 10.8 N·m {110 kgf·cm, 8 ft·lbf} |
|
(d) Connect the connector.
2. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT
Click here .gif)
3. WARM UP ENGINE
Click here
4. INSPECT FOR REFRIGERANT LEAK
Click here
