Toyota Camry (XV70): Installation
Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Lighting (int) / Personal Light / Installation
INSTALLATION
PROCEDURE
1. INSTALL ROOF CONSOLE BOX ASSEMBLY
(a) Connect each connector.

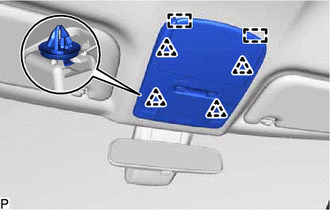

(b) for Normal Roof:
| (1) Engage the 2 guides and 4 clips to install the roof console box assembly. |
|

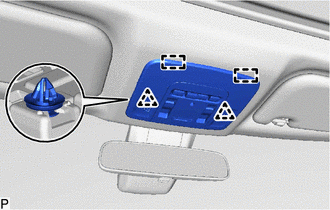

(c) except Normal Roof:
|
(1) Engage the 2 guides and 2 clips to install the roof console box assembly. |
|
