Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Power Source, Network / 2gr-fks (battery / Charging) / Generator / Components

COMPONENTS

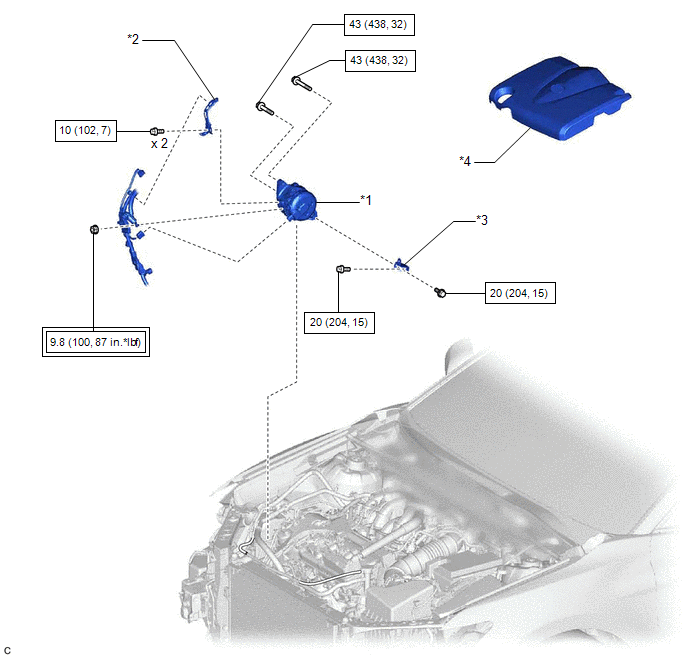

ILLUSTRATION

*1

GENERATOR ASSEMBLY

*2

WIRE HARNESS CLAMP BRACKET

*3

GENERATOR ASSEMBLY BRACKET

*4

V-BANK COVER SUB-ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

*1

GENERATOR BRUSH HOLDER ASSEMBLY

*2

GENERATOR COIL ASSEMBLY

*3

GENERATOR DRIVE END FRAME BEARING

*4

GENERATOR PULLEY WITH CLUTCH

*5

GENERATOR REAR END COVER

*6

GENERATOR ROTOR ASSEMBLY

*7

GENERATOR TERMINAL INSULATOR

*8

GENERATOR DRIVE END FRAME

*9

RETAINER PLATE

*10

BEARING COVER PACKING

*11

GENERATOR PULLEY CAP

-

-

N*m (kgf*cm, ft.*lbf) : Specified torque

*

For use with SST

●

Non-reusable part

-

-
