Toyota Camry (XV70): Installation

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Lighting (int) / Room Light / Installation

INSTALLATION

PROCEDURE

1. INSTALL REAR ROOM LIGHT BULB (for Bulb Type)

(a) Install the rear room light bulb to the room light switch base.

2. INSTALL ROOM LIGHT ASSEMBLY (for Bulb Type)

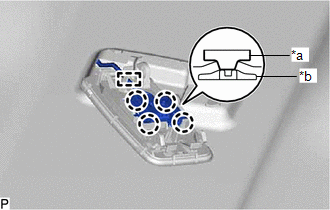

(a) Align the switch parts as shown in the illustration and engage the 4 claws to install the room light switch base to the room light housing.

*a

Switch Part of Room Light Switch Base

*b

Switch Part of Room Light Housing

(b) Engage the clamp.

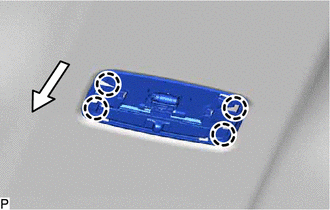

(c) Engage the 4 claws to install the room light housing.

Front

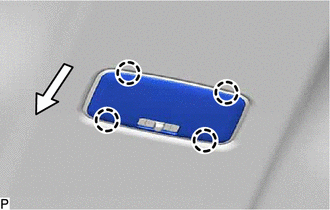

(d) Engage the 4 claws to install the room light lens.

Front

3. INSTALL SPOT LIGHT ASSEMBLY (for LED Type)

(a) Connect the connector.

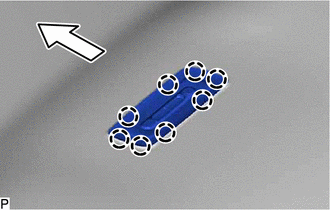

(b) Engage the 8 claws to install the spot light assembly.

Front
