Toyota Camry (XV70): Message Not Displayed on Multi-information Display When AUTO Function Set to ON/OFF

Toyota Camry Repair Manual XV70 (2018-2024) / Brake / Parking Brake / Electric Parking Brake System / Message Not Displayed on Multi-information Display When AUTO Function Set to ON/OFF

DESCRIPTION

When the AUTO function is set to ON/OFF, a message is displayed on the multi-information display in the combination meter assembly.

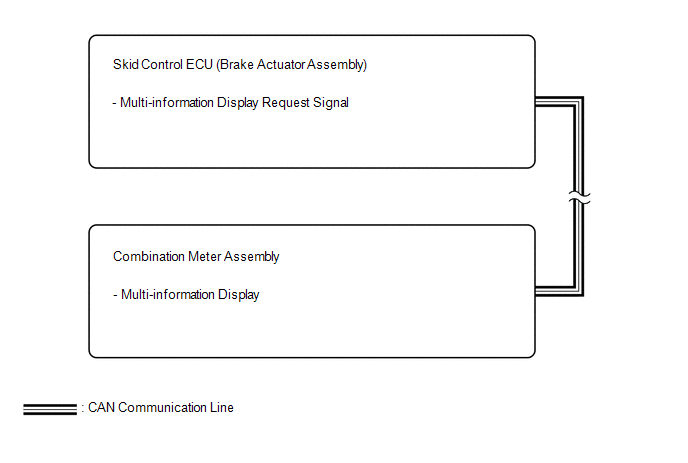

WIRING DIAGRAM

PROCEDURE

1.

CHECK OPERATION OF AUTO FUNCTION

(a) Check that the AUTO function operates when the operating conditions are met.

HINT:

Do not use the multi-information display to determine whether the AUTO function is operating or not.

Result

Proceed to

The AUTO function operates

A

The AUTO function does not operate

B

A

REPLACE COMBINATION METER ASSEMBLY

B

GO TO Electric Parking Brake System AUTO Function Circuit
