Toyota Camry (XV70): Parts Location
PARTS LOCATION
ILLUSTRATION
|
*A | w/ Smart Key System |
- | - |
|
*1 | LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY |
*2 | DLC3 |
|
*3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR BACK RELAY - D/L FUSE |
|
*5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
- | - |

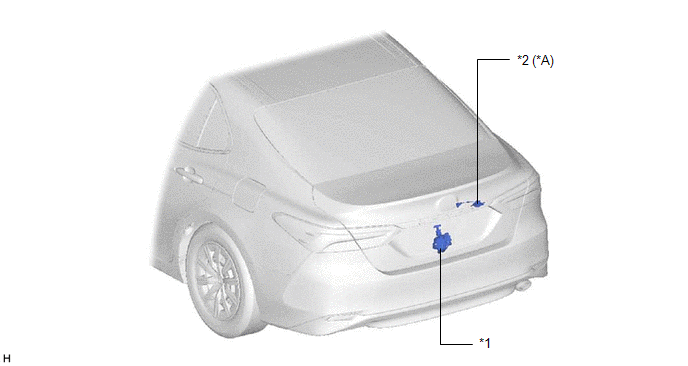

ILLUSTRATION
|
*A | w/ Smart Key System |
- | - |
|
*1 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY |
*2 | LUGGAGE ELECTRICAL KEY SWITCH |
