Toyota Camry (XV70): Rear Brake Flexible Hose(w/o Electric Parking Brake System)

Toyota Camry Repair Manual XV70 (2018-2024) / Brake / Brake (rear) / Rear Brake Flexible Hose(w/o Electric Parking Brake System)

Components

COMPONENTS

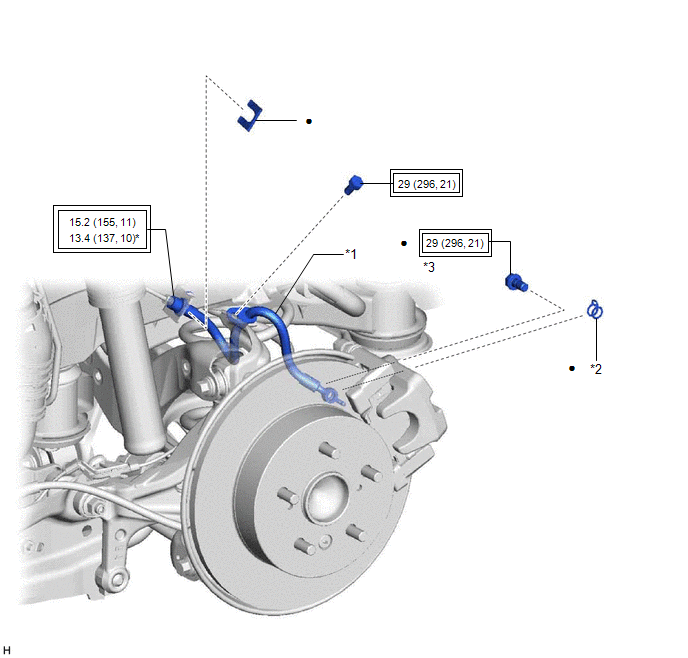

ILLUSTRATION

*1

REAR FLEXIBLE HOSE

*2

GASKET

*3

UNION BOLT

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

●

Non-reusable part

-

-

Removal

REMOVAL

CAUTION / NOTICE / HINT

Click here

Installation

INSTALLATION

CAUTION / NOTICE / HINT

Click here
