Toyota Camry (XV70): Removal
REMOVAL
PROCEDURE
1. REMOVE ROOF CONSOLE BOX ASSEMBLY
(a) for Normal Roof:

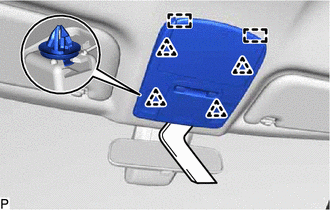

| (1) Using a moulding remover, disengage the 4 clips. |
|
(2) Disengage the 2 guides.
(b) except Normal Roof:

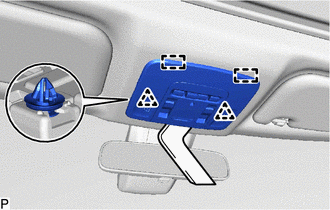

| (1) Using a moulding remover, disengage the 2 clips. |
|
(2) Disengage the 2 guides.
(c) Disconnect each connector to remove the roof console box assembly.
